Connector End View (C311) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C311	INLINE	BK	14A00514401	Not Available

Terminal Part Number	Service Part Number	Size

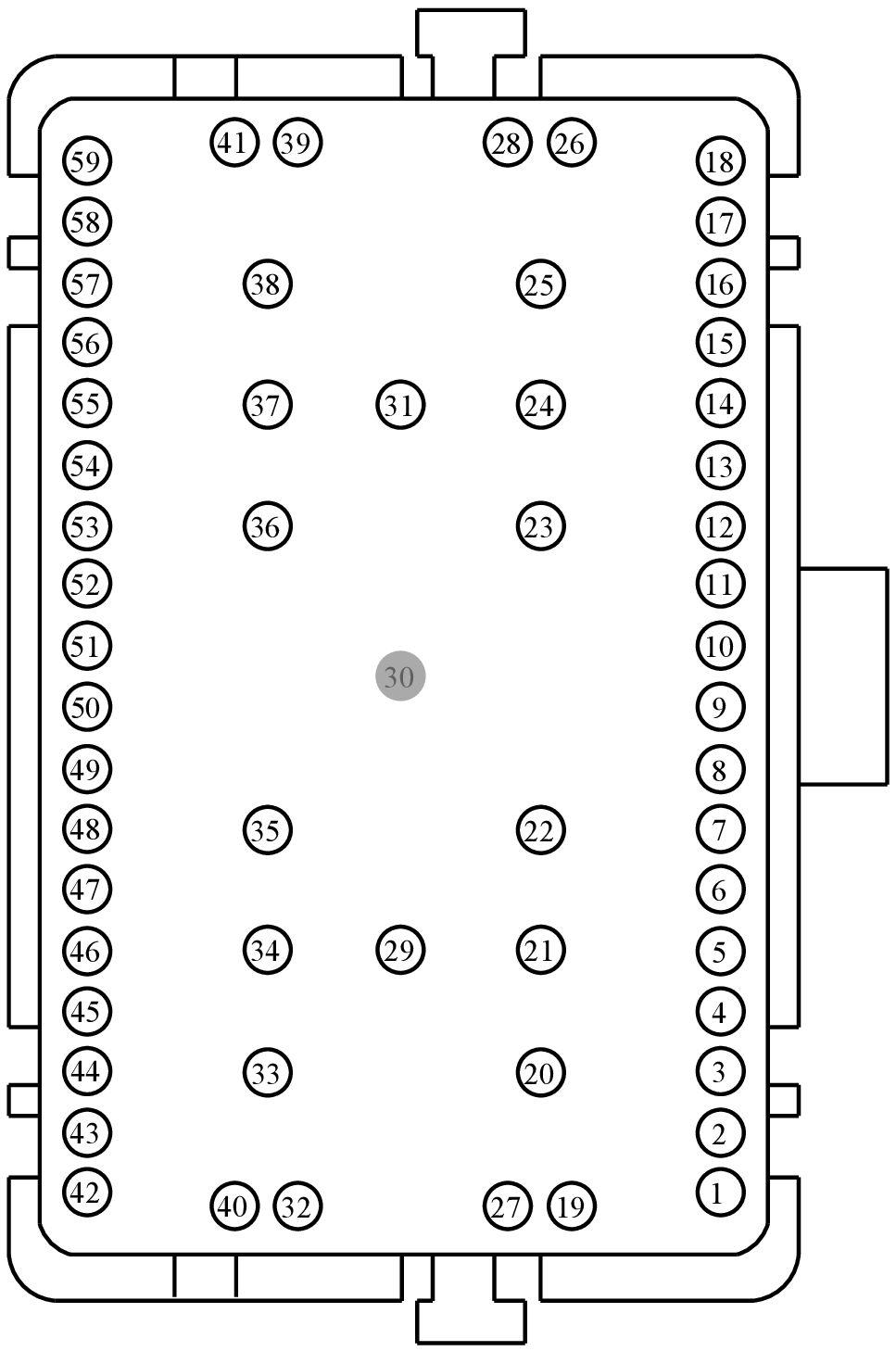

MALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CR195 (YE-BU)	20	N/A
2	GD233 (BK)	20	N/A
2	GD238 (BK-WH)	20	N/A
3	CBP02 (GN)	22	N/A
4	VHA38 (VT-GY)	22	N/A
5	CBP02 (GN)	20	N/A
6	CBP06 (WH-BU)	20	N/A
7	SBP12 (GN-RD)	22	N/A
8	VDN02 (GN-OG)	22	N/A
9	VMC11 (YE-VT)	20	N/A
10	RMC32 (GN-BU)	20	N/A
11	VPK05 (BN-GN)	22	N/A
12	RPK05 (YE-OG)	22	N/A
13	CMP02 (GN-BU)	22	N/A
14	CMP18 (GN-BN)	22	N/A
15	VDB05 (WH)	22	N/A
16	VDB04 (BU)	22	N/A
17	VHS26 (YE-OG)	22	N/A
18	VHA25 (WH-BN)	22	N/A
19	VMC05 (VT-OG)	20	N/A
20	CHS29 (WH-BU)	17	N/A
21	CLS26 (BU-GY)	20	N/A
22	CLS22 (GN-BN)	20	N/A
23	VMED3 (BU)	18	N/A
24	RMED3 (GY-BN)	18	N/A
25	CHS30 (GY-YE)	17	N/A
26	VPK06 (GY-VT)	22	N/A
27	CLN09 (YE-GN)	20	N/A
28	RPK06 (BU-WH)	22	N/A
29	SBB42 (YE-RD)	12	N/A
30	*	*	N/A
31	GD353 (BK-GN)	14	N/A
31	GD356 (BK-GN)	14	N/A
32	VLN33 (GY-VT)	20	N/A
33	HYA01 (OG-GN)	18	N/A
34	HYA02 (OG-WH)	18	N/A
35	VME79 (GY-VT)	18	N/A
36	RME79 (BN-GN)	18	N/A
37	VMED4 (YE-OG)	18	N/A
38	RMED4 (GN-BN)	18	N/A
39	VLN04 (VT-GY)	22	N/A
40	RHS26 (VT-GY)	22	N/A
41	SBP18 (YE-RD)	18	N/A
42	VDB25 (GN-OG)	22	N/A
43	VDB26 (GY-BU)	22	N/A
44	CPL87 (BN)	22	N/A
45	VHS27 (WH-OG)	22	N/A
46	CLS10 (GN-BN)	22	N/A
47	LYA03 (YE-VT)	22	N/A
48	RYA03 (BU-BN)	22	N/A
49	*	*	N/A
50	VDB06 (GY-OG)	22	N/A
51	VDB07 (VT-OG)	22	N/A
52	CMC25 (WH-VT)	22	N/A
53	CBP06 (WH-BU)	20	N/A
54	VME78 (GN-VT)	18	N/A
55	RME78 (GY)	18	N/A
56	CBP02 (GN)	22	N/A
57	VHP08 (GY-OG)	22	N/A
58	CHP03 (GN-BN)	22	N/A
	59	CMP32 (GN)	22	N/A

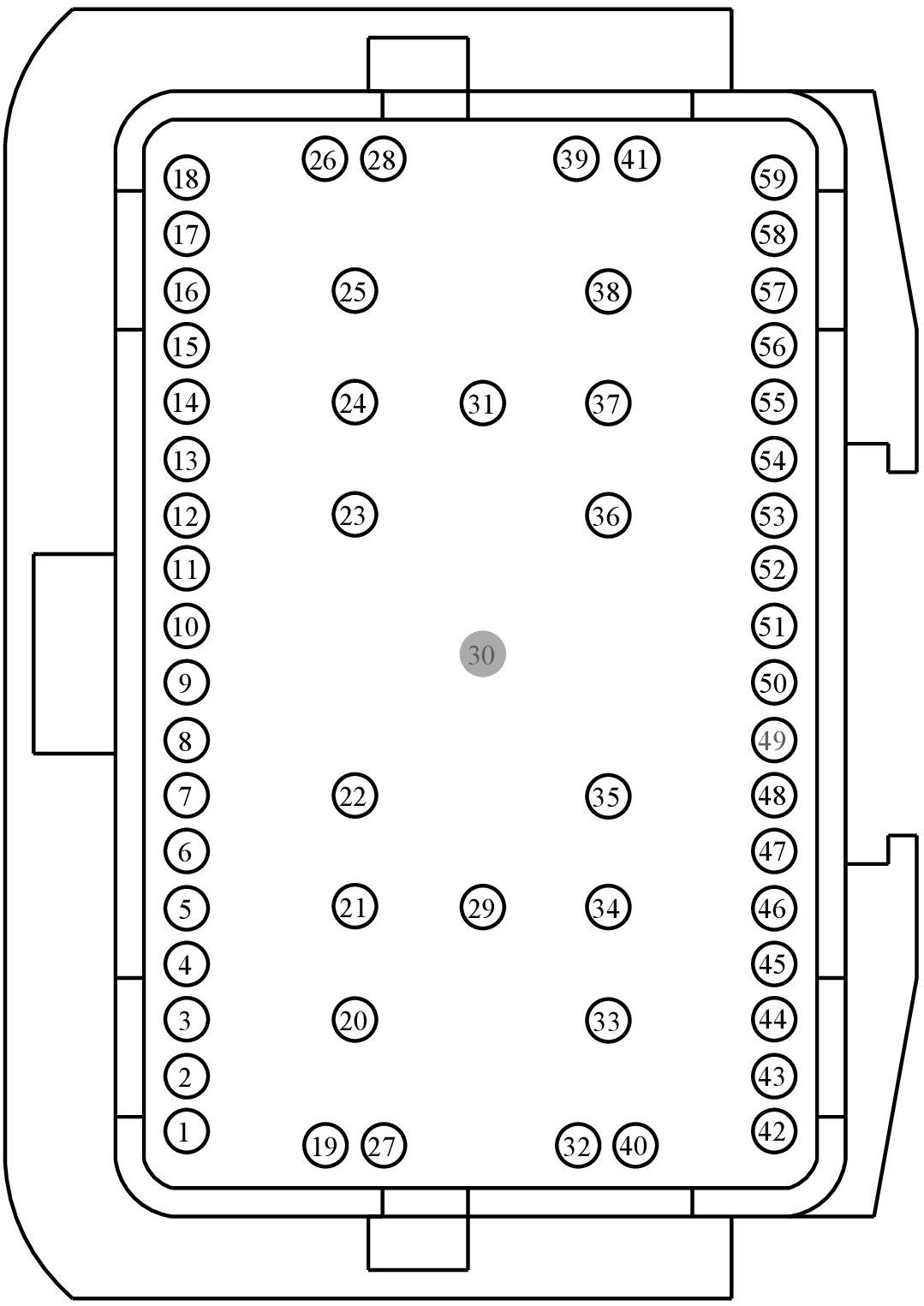

FEMALE

Harness

14401

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CR195 (YE-BU)	20	N/A
2	GD233 (BK)	20	N/A
2	GD238 (BK-WH)	20	N/A
3	CBP21 (BU-GY)	22	N/A
4	VHA38 (VT-GY)	22	N/A
5	CBP21 (BU-GY)	20	N/A
6	CBP06 (WH-BU)	20	N/A
7	SBP12 (GN-RD)	22	N/A
8	VDN02 (GN-OG)	22	N/A
9	VMC11 (YE-VT)	22	N/A
10	RMC32 (GN-BU)	22	N/A
11	VPK05 (BN-GN)	22	N/A
12	RPK05 (YE-OG)	22	N/A
13	CMP02 (GN-BU)	22	N/A
14	CMP18 (GN-BN)	22	N/A
15	VDB05 (WH)	20	N/A
15	VDB05 (WH)	22	N/A
16	VDB04 (BU)	20	N/A
16	VDB04 (BU)	22	N/A
17	VHS27 (WH-OG)	22	N/A
18	VHA25 (BN-VT)	22	N/A
19	VMC05 (VT-OG)	20	N/A
20	CHS30 (GY-YE)	17	N/A
21	CLS26 (BU-GY)	17	N/A
22	CLS22 (GN-BN)	17	N/A
23	CPL87 (BN)	22	N/A
23	VME07 (WH)	22	N/A
23	VMED3 (BU)	18	N/A
24	HYA02 (OG-WH)	18	N/A
24	RME07 (WH-BN)	22	N/A
24	RMED3 (GY-BN)	18	N/A
25	CHS29 (WH-BU)	17	N/A
26	VPK06 (GY-VT)	22	N/A
27	CLN09 (YE-GN)	20	N/A
28	RPK06 (BU-WH)	22	N/A
29	SBB42 (YE-RD)	12	N/A
30	*	*	N/A
31	GD120 (BK-GN)	16	N/A
32	VLN33 (GY-VT)	20	N/A
33	HYA01 (OG-GN)	18	N/A
34	HYA02 (OG-WH)	18	N/A
35	VME79 (GY-VT)	18	N/A
36	RME79 (BN-GN)	18	N/A
37	VME10 (WH-VT)	20	N/A
37	VME78 (GN-VT)	18	N/A
37	VMED4 (YE-OG)	18	N/A
38	RME10 (WH-OG)	20	N/A
38	RME78 (GY)	18	N/A
38	RMED4 (GN-BN)	18	N/A
39	VLN04 (VT-GY)	22	N/A
40	RH104 (BU-BN)	22	N/A
40	RH119 (YE-VT)	22	N/A
40	RHS26 (VT-GY)	22	N/A
41	SBP18 (YE-RD)	22	N/A
42	VDB25 (GN-OG)	22	N/A
43	VDB26 (GY-BU)	22	N/A
44	CPL87 (BN)	22	N/A
44	VME07 (WH)	22	N/A
44	VMED3 (BU)	18	N/A
44	VMED3 (BU)	20	N/A
45	RME07 (WH-BN)	22	N/A
45	RMED3 (GY-BN)	18	N/A
45	RMED3 (GY-BN)	20	N/A
45	VHS26 (YE-OG)	22	N/A
46	CLS10 (GN-BN)	22	N/A
47	LYA03 (YE-VT)	22	N/A
48	RYA03 (BU-BN)	22	N/A
49	VDB06 (GY-OG)	22	N/A
50	VDB06 (GY-OG)	22	N/A
51	VDB07 (VT-OG)	22	N/A
52	CMC25 (WH-VT)	20	N/A
53	CBP06 (WH-BU)	20	N/A
53	VLN04 (VT-GY)	22	N/A
54	VME10 (WH-VT)	20	N/A
54	VME78 (GN-VT)	18	N/A
54	VMED4 (YE-OG)	18	N/A
54	VMED4 (YE-OG)	20	N/A
55	RME10 (WH-OG)	20	N/A
55	RME78 (GY)	18	N/A
55	RMED4 (GN-BN)	18	N/A
55	RMED4 (GN-BN)	20	N/A
56	CPW77 (WH)	22	N/A
57	VHP08 (GY-OG)	22	N/A
58	CHP03 (GN-BN)	22	N/A
	59	CMP32 (GN)	22	N/A
