Connector End View (C310B) - RESTRAINTS CONTROL MODULE (RCM)

Connector: Description Color Harness Base Part # Service Pigtail
C310B RESTRAINTS CONTROL MODULE (RCM) BK 14A005 part# N/A Not Available

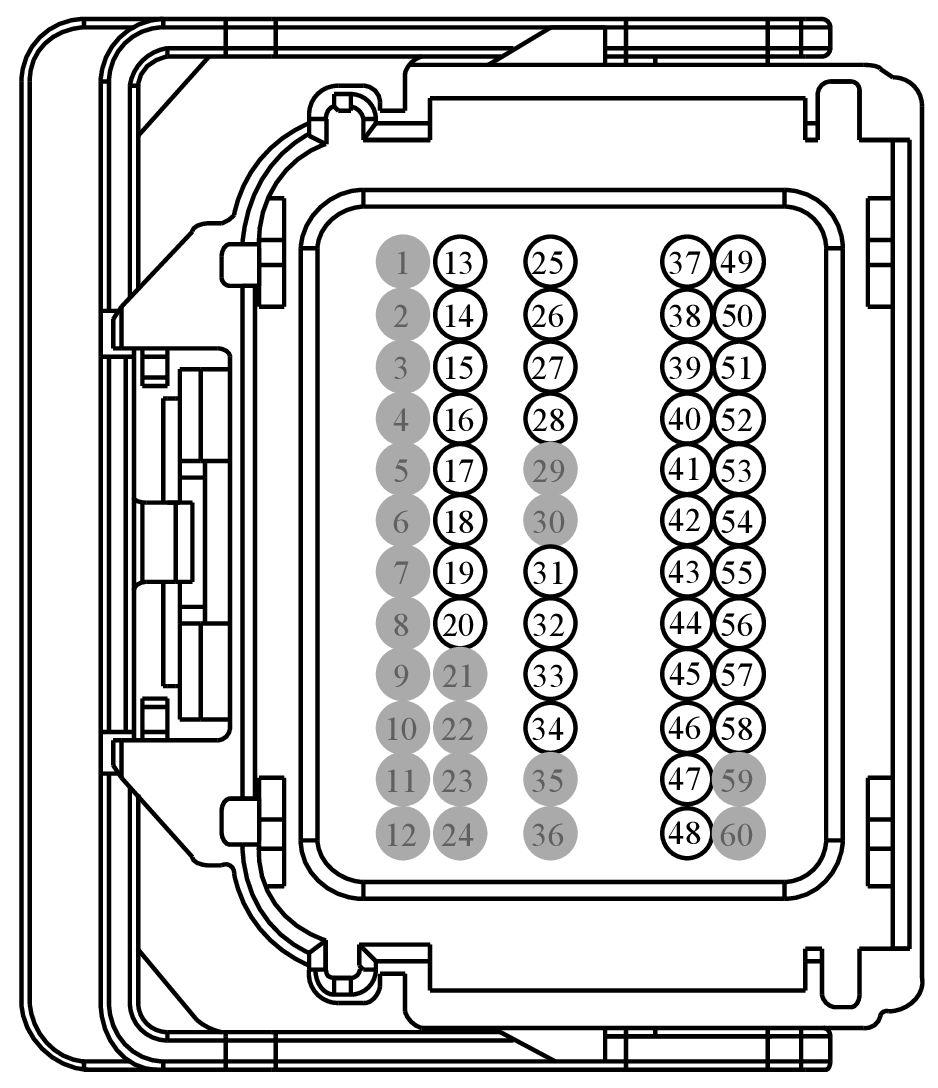

GFDWR129545Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 * * Not Used N/A
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 CR123 (GN-VT) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE + N/A
14 RR123 (GY) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 DRIVER SIDE - N/A
15 RR125 (GN) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD - N/A
16 CR125 (BU-BN) 20 CTRL MOD. - SEAT BELT PRETENSIONER ROW 2 PASSENGER SIDE OUTBOARD + N/A
17 CR121 (GY-VT) 20 CTRL MOD. - SEAT BELT PRETENSIONER FRONT MIDDLE + FOE N/A
17 CR176 (WH-BN) 20 CTRL MOD. - BELT LOAD LIMITER PASSENGER + FNA N/A
18 RR121 (BU) 20 CTRL MOD. - SEAT BELT PRETENSIONER FRONT MIDDLE - FOE N/A
18 RR176 (BN) 20 CTRL MOD. - BELT LOAD LIMITER PASSENGER - FNA N/A
19 RR111 (YE-VT) 18 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE - N/A
20 CR111 (BN-WH) 18 CTRL MOD. - INFLATABLE CURTAIN PASSENGER SIDE + N/A
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 * * Not Used N/A
25 CR109 (BN-BU) 18 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + N/A
26 RR109 (BU-GN) 18 CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - N/A
27 CR209 (WH-VT) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 3 PASSENGER SIDE OUTBOARD N/A
28 CR207 (GN-VT) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 3 DRIVER SIDE N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 VR220 (VT-OG) 20 SENSOR - SIDE IMPACT ROW 2 PASSENGER SIDE N/A
32 RR134 (BN-BU) 20 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 PASSENGER SIDE - N/A
33 RR133 (GY-BN) 20 CTRL MOD. - SENSOR SIDE IMPACT ROW 2 DRIVER SIDE - N/A
34 VR219 (GN-WH) 20 SENSOR - SIDE IMPACT ROW 2 DRIVER SIDE N/A
35 * * Not Used N/A
36 * * Not Used N/A
37 CR106 (VT-GY) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD + N/A
38 RR106 (YE-OG) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT PASSENGER OUTBOARD - N/A
39 RR105 (GY-YE) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE - N/A
40 CR105 (GN-BU) 20 CTRL MOD. - AIR BAG SIDE SEAT MOUNTED FRONT DRIVER SIDE + N/A
41 CR196 (VT-GY) 20 CTRL MOD. - PASSENGER PRESENCE DETECTION SENSOR FOE N/A
41 VR215 (YE-VT) 20 SENSOR - SEAT TRACK POSITION DRIVER FNA N/A
42 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) N/A
43 VR236 (BU-OG) 20 SENSOR - SIDE IMPACT PRESSURE FRONT DRIVER SIDE N/A
44 RR174 (WH-OG) 20 CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT DRIVER SIDE - N/A
45 RR175 (YE-OG) 20 CTRL MOD. - SENSOR SIDE IMPACT PRESSURE FRONT PASSENGER SIDE - N/A
46 VR237 (BN-WH) 20 SENSOR - SIDE IMPACT PRESSURE FRONT PASSENGER SIDE N/A
47 VDB26 (GY-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW N/A
48 VDB25 (GN-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH N/A
49 CR179 (BU) 20 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD + N/A
50 RR179 (GY-BU) 20 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT PASSENGER OUTBOARD - N/A
51 RR188 (WH-VT) 20 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE - N/A
52 CR188 (VT-GN) 20 CTRL MOD. - SEAT BELT PRETENSIONER RETRACTOR FRONT DRIVER SIDE + N/A
53 RR172 (GN-VT) 20 CTRL MOD. - COMMON RETURN FOR RESTRAINTS SENSORS/SWITCHES N/A
54 CR201 (GN-BU) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT DRIVER SIDE N/A
55 CR203 (GY-VT) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) FRONT PASSENGER OUTBOARD N/A
56 CR206 (BN) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 PASSENGER SIDE OUTBOARD N/A
57 CR204 (BU-GN) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 DRIVER SIDE N/A
58 CR205 (WH-OG) 20 SENSOR - SEAT BELT BUCKLE (SEAT BELT REMINDER) ROW 2 MIDDLE FOE N/A
58 VR216 (GN-OG) 20 SENSOR - SEAT TRACK POSITION FRONT PASSENGER FNA N/A
59 * * Not Used N/A
60 * * Not Used N/A
