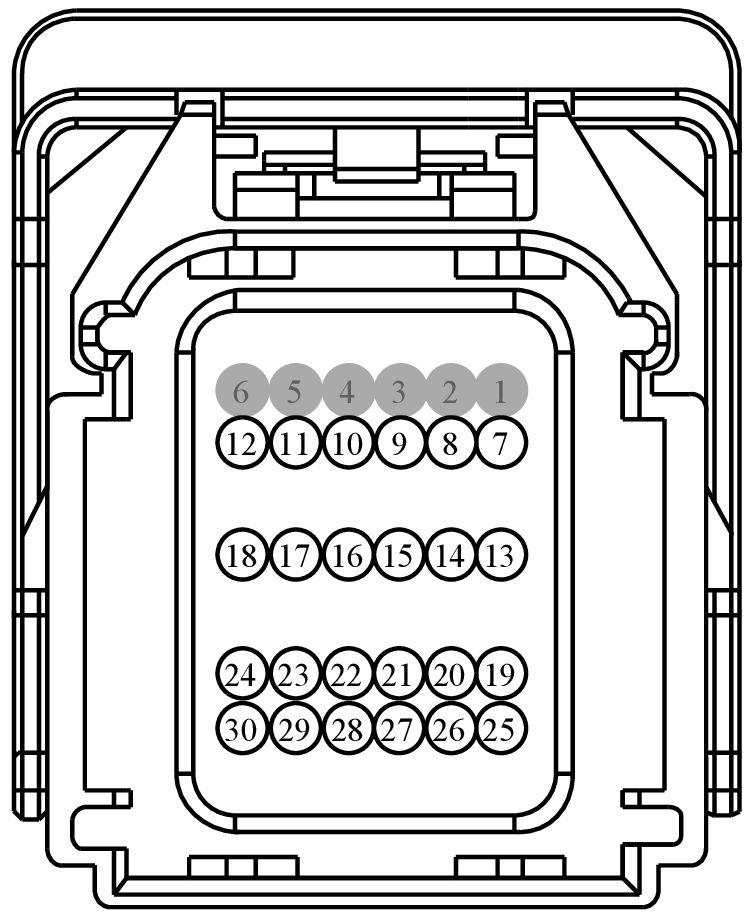

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C310A	RESTRAINTS CONTROL MODULE (RCM)	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	CR144 (GY-OG)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +	N/A
8	RR144 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -	N/A
9	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -	N/A
10	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +	N/A
11	CR168 (WH-GN)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN +	N/A
12	RR168 (BU-WH)	20	CTRL MOD. - PYROTECHNIC STEERING COLUMN -	N/A
13	CR189 (BU-OG)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # ON	N/A
14	RR224 (GY-BU)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # RETURN	N/A
15	VR214 (WH-BU)	20	SENSOR - IMPACT FRONT 2ND	N/A
16	RR130 (GN-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT 2ND	N/A
17	RR173 (GN-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT CENTRAL -	FOE	N/A
17	RR129 (YE-GY)	20	CTRL MOD. - SENSOR IMPACT FRONT 1ST -	FNA	N/A
17	RR173 (GN-BN)	20	CTRL MOD. - SENSOR IMPACT FRONT CENTRAL -	FOE	N/A
18	CR173 (WH-BU)	20	CTRL MOD. - SENSOR IMPACT FRONT CENTRAL +	FNA	N/A
18	VR213 (VT-GN)	20	SENSOR - IMPACT FRONT 1ST	N/A
19	CBP01 (BU)	20	FUSE - 1 OR CIRCUIT BREAKER	N/A
19	CR194 (VT-WH)	20	CTRL MOD. - EXTENDED POWER # RESTRAINTS CONTROL MODULE POWER	N/A
20	CR190 (GY-BN)	22	CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATION # OFF	N/A
21	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -	single passenger seat	N/A
21	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -	dual stage airbag	N/A
22	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +	single passenger seat	N/A
22	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +	dual stage airbag	N/A
23	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +	FOE	N/A
23	CR139 (VT-WH)	20	CTRL MOD. - AIR BAG DRIVER KNEE +	FNA	N/A
24	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -	FOE	N/A
24	RR139 (YE)	20	CTRL MOD. - AIR BAG DRIVER KNEE -	FNA	N/A
25	CR224 (GN)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG ON (A)	N/A
26	CR225 (YE)	22	SWITCH - PASSENGER AIRBAG DEACTIVATION # AIRBAG OFF (B)	N/A
27	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -	N/A
28	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +	N/A
29	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	N/A
30	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	N/A
