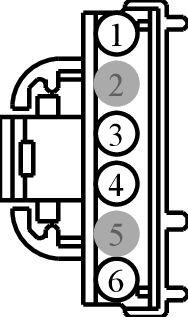

Connector End View (C301) - AC OUTLET

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C301	AC OUTLET	BK	14B079	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	N/A
2	*	*	Not Used	N/A
3	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	N/A
4	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	N/A
5	*	*	Not Used	N/A
6	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1006

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-NB

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Lamp - Dimmer Switch
• Module - Front Interface
• Switch - Adjustable Pedal
• Switch - Dimmer
• Switch - Dimmer (Instrument Panel)
• Switch - Message Center
• Switch - Power Window - Passenger (Front)
