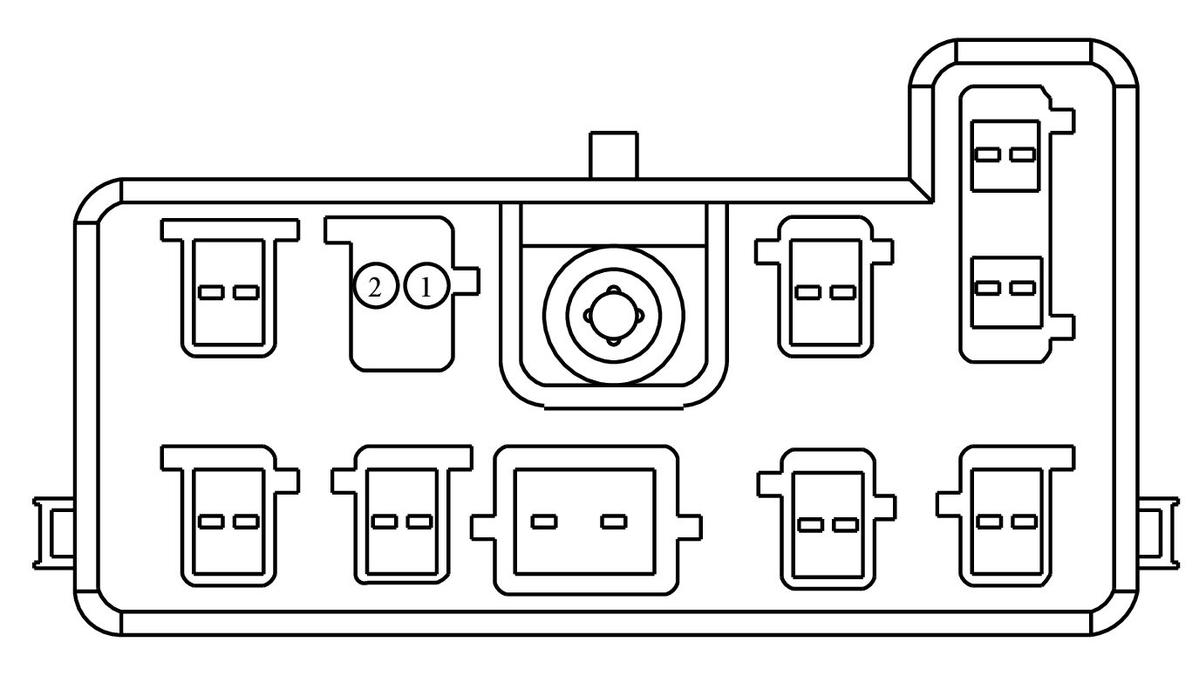

Connector End View (C300C) - INLINE
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C300C | INLINE | BK | 192254214A005 | Not Available | ||||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
MALE
Harness
1922542
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | VR215 (YE-VT) | 20 | 1922542 | N/A |
| 2 | RR172 (GN-VT) | 20 | 1922542 | N/A |
FEMALE
Harness
14A005
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number |
| 1 | VR215 (YE-VT) | 20 | 14A005 | N/A |
| 2 | RR172 (GN-VT) | 20 | 14005 | N/A |
