Connector End View (C296) - EVAPORATOR TEMPERATURE SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C296	EVAPORATOR TEMPERATURE SENSOR	BK	14401	#	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RH104 (BU-BN)	22	CTRL MOD. - CLIMATE # SENSOR RETURN	DATC	N/A
1	RH119 (YE-VT)	22	CTRL MOD. - CLIMATE # SENSOR A/C EVAPORATOR TEMPERATURE	N/A
2	VH406 (VT-BN)	22	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)	N/A

Available Pigtail Kits

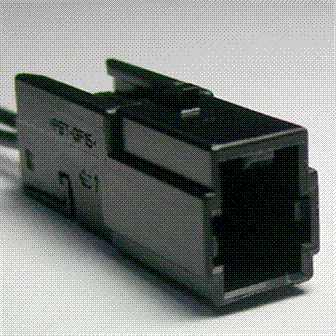

Pigtail Kit Part Number WPT-1477

Courtesy of FORD MOTOR COMPANY

Service Part Number:

GU2Z-14S411-MA

Gauge:

20

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Sensor - A/C Evaporator Temperature
• Sensor - Liftgate Obstacle
