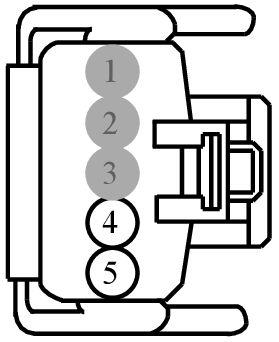

Connector End View (C287) - AUTOLAMP SENSOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C287 | AUTOLAMP SENSOR | GN | 14401 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | VLF14 (BU-BN) | 20 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) + | N/A | ||||
| 5 | RLF14 (GY-BN) | 20 | SENSOR - AUTOLAMP DAY/NIGHT (AMBIENT LIGHT) - | N/A | ||||
