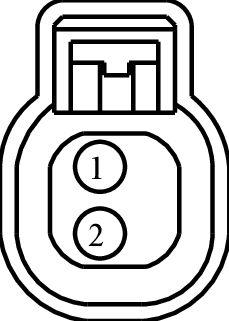

Connector End View (C268) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C268	INLINE	BK	14B32414401	See Below

Terminal Part Number	Service Part Number	Size

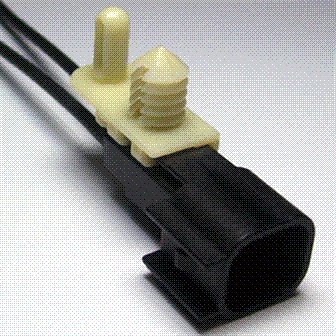

MALE

Harness

14B324

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBP85 (YE)	22	N/A
	2	CHP01 (BU)	22	N/A

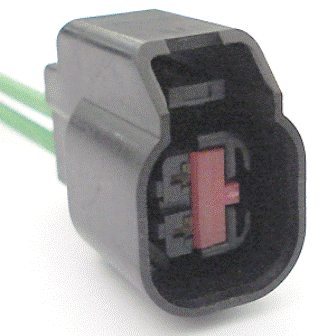

FEMALE

Harness

14401

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBP02 (GN)	22	N/A
	2	VHP01 (BU-GN)	22	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1259

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-RZB

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Lamp - CHMSL (Center High Mount Stop Lamp)
• Lamp - Rear Park
• Lamp - Rear Turn
• Switch - Tonneau Cover (Pinch Strip)

Pigtail Kit Part Number WPT-966

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-CNB

Gauge:

14

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Actuator - Door Lock - Decklid/Liftgate
• Actuator - Liftgate Glass
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Module - Warning Chime/ Beltminder
• Sensor - Brake Pedal Position
• Speaker - Door (front)
• Speaker - Door (rear)
• Speaker - Front
• Speaker - Rear
• Speaker - Subwoofer
• Switch - Brake Deactivation
• Switch - Stop Lamp
