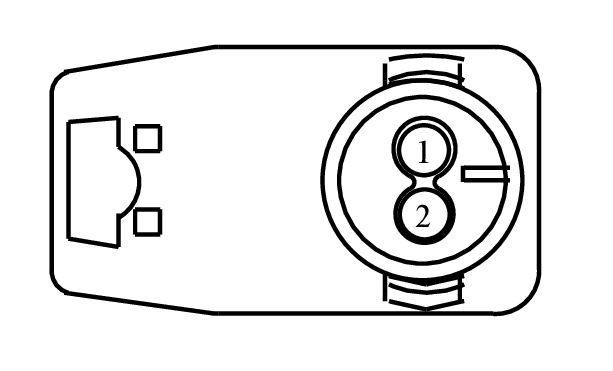

Connector End View (C256A) - PASSENGER AIRBAG

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C256A	PASSENGER AIRBAG	GN	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR103 (GY-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 +	N/A
2	RR103 (VT-GN)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 1 -	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1226

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-BJA

Gauge:

20

Pin material:

FCI - Airbag

Cavities:

2

Vehicle Uses:

• Squib - Airbag (Passenger)
