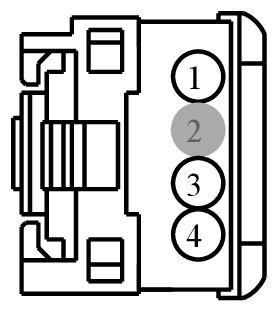

Connector End View (C252) - PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C252 | PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER | BK | 14401 | part# N/A | Not Available |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE436 (VT-OG) | 22 | CTRL MOD. -WAKE UP PCM | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | VDN01 (BU-WH) | 22 | CTRL MOD. - LIN BUS # BCM 1 | N/A | ||||
| 4 | GD214 (BK-BU) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE | LHD | N/A | |||
| 4 | GD215 (BK-GY) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT | RHD | N/A | |||
