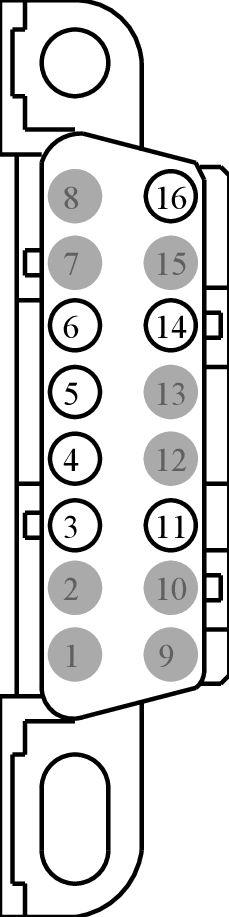

Connector End View (C251) - DATA LINK CONNECTOR (DLC)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C251	DATA LINK CONNECTOR (DLC)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 HIGH	N/A
4	* (*)	*	GROUND	N/A
5	* (*)	*	GROUND	N/A
6	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 1 HIGH	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 LOW	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	* (*)	*	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 1 LOW	N/A
15	*	*	Not Used	N/A
16	* (*)	*	FUSE - 10 OR CIRCUIT BREAKER	N/A

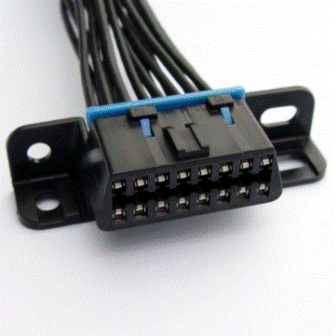

Available Pigtail Kits

Pigtail Kit Part Number WPT-615

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-LKA

Gauge:

16

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Test Connector - Diagnostic
