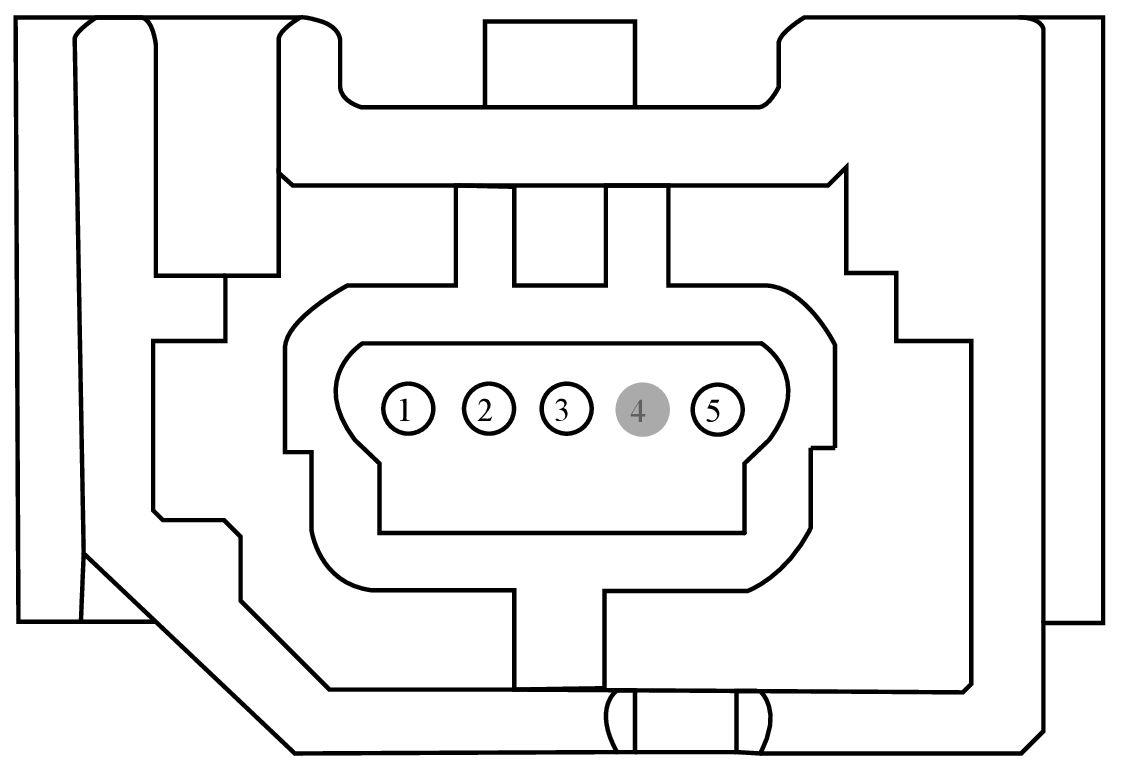

Connector End View (C240C) - AUDIO CONTROL MODULE (ACM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240C	AUDIO CONTROL MODULE (ACM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (*)	*	USB1 VBUS	N/A
2	* (*)	*	USB1 D-	N/A
3	* (*)	*	USB1 D+	N/A
4	*	*	Not Used	N/A
5	* (*)	*	USB1 GND	N/A
