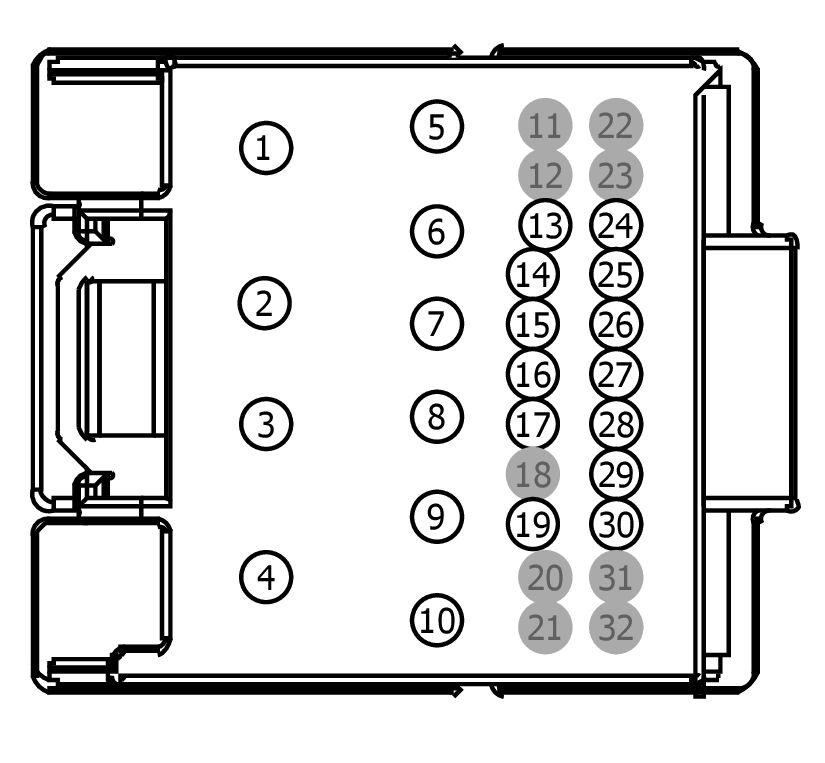

Connector End View (C240A) - AUDIO CONTROL MODULE (ACM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C240A	AUDIO CONTROL MODULE (ACM)	14401			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP23 (WH-RD)	16	FUSE - 23 OR CIRCUIT BREAKER	N/A
2	RMED4 (GN-BN)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT FRONT FULL RANGE -	N/A
3	VMED4 (YE-OG)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT FRONT FULL RANGE +	N/A
4	GD215 (BK-GY)	16	GROUND - INSTRUMENT PANEL STRUCTURE # 2ND POINT	RHD	N/A
4	GD214 (BK-WH)	16	GROUND - INSTRUMENT PANEL STRUCTURE	LHD	N/A
5	RME79 (BN-GN)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE -	N/A
6	VME79 (GY-VT)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT REAR FULL RANGE +	N/A
7	RMED3 (GY-BN)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT FRONT FULL RANGE -	N/A
8	VMED3 (BU)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER LEFT FRONT FULL RANGE +	N/A
9	RME78 (GY)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE -	N/A
10	VME78 (GN-VT)	18	CTRL MOD. - AUDIO HEAD UNIT # SPEAKER RIGHT REAR FULL RANGE +	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	DMM13 (BARE)	22	MICROPHONE - PHONE/VOICE CONTROL D	N/A
13	VME06 (GN)	22	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 +	9 speaker	N/A
14	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	N/A
15	VMM13 (YE-GN)	22	MICROPHONE - PHONE/VOICE CONTROL +	N/A
16	VMEA9 (BU-GY)	20	CTRL MOD. - REMOTE CD # AUDIO LEFT +	N/A
17	VMEB0 (GN-WH)	20	CTRL MOD. - REMOTE CD # AUDIO RIGHT +	N/A
18	*	*	Not Used	N/A
19	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	DMP19 (BARE)	22	CAMERA - PARKING AID REAR VIDEO D	N/A
24	RME06 (GY-YE)	22	CTRL MOD. - AMPLIFIER # SPEAKER CENTER FRONT MID RANGE 2 -	9 speaker	N/A
25	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	N/A
26	RMM13 (BU)	22	MICROPHONE - PHONE/VOICE CONTROL -	N/A
27	RMEA9 (VT-BN)	20	CTRL MOD. - REMOTE CD # AUDIO LEFT -	N/A
28	RMEB0 (WH-BN)	20	CTRL MOD. - REMOTE CD # AUDIO RIGHT -	N/A
29	VMC49 (VT-GY)	26	CTRL MOD. - INTEGRATED CONTROL PANEL LIN BUS	N/A
30	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
