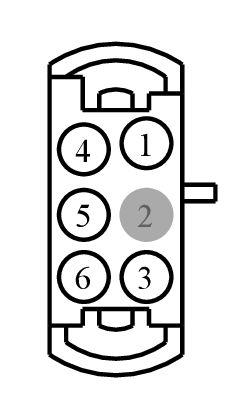

Connector End View (C233) - IN-VEHICLE TEMPERATURE/HUMIDITY SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C233	IN-VEHICLE TEMPERATURE/HUMIDITY SENSOR	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP02 (GN)	22	FUSE - 2 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	RH103 (GY)	22	CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR -	N/A
4	VH414 (GN-BU)	22	SENSOR - INCAR TEMP.	N/A
5	VH413 (WH-BU)	22	SENSOR - HUMIDITY	N/A
6	RH104 (BU-WH)	22	CTRL MOD. - CLIMATE # SENSOR RETURN	N/A

Available Pigtail Kits

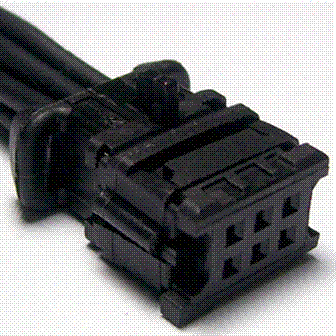

Pigtail Kit Part Number WPT-1334

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-FA

Gauge:

18

Pin material:

Tin (greased)

Cavities:

6

Vehicle Uses:

• Sensor - EATC In Car Temperature
