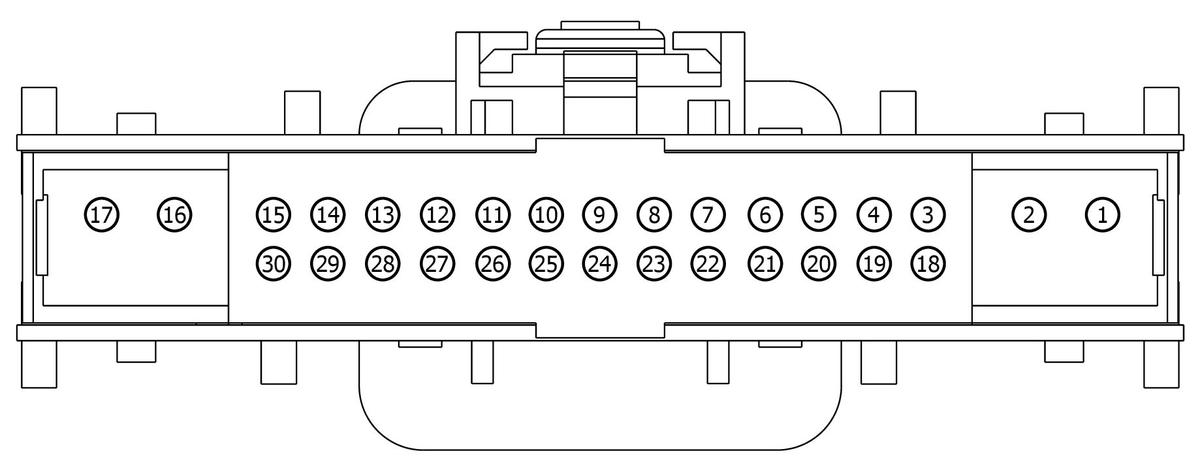

Connector End View (C228B) - HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C228B	HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB48 (VT-RD)	16	FUSE - 48 OR CIRCUIT BREAKER	N/A
2	SBB48 (VT-RD)	16	FUSE - 48 OR CIRCUIT BREAKER	N/A
3	SBP21 (GY-RD)	20	FUSE - 21 OR CIRCUIT BREAKER	N/A
4	CH232 (WH-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COMMON	N/A
5	CH201 (BN-BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON	N/A
5	VH101 (WH-VT)	20	CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL	DATC	N/A
6	CH207 (BU-GY)	20	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	N/A
6	VH411 (VT-GN)	22	SENSOR - DISCHARGE TEMP. # RIGHT (RIGHT FRONT PANEL)	DATC	N/A
7	CH208 (GN-OG)	20	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	N/A
7	VH409 (WH)	22	SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL)	DATC	N/A
8	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	LHD	N/A
8	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	RHD	N/A
8	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	DATC	N/A
9	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1 / CLOSE (IF PLUS)	LHD	N/A
9	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2 / OPEN (IF PLUS)	RHD	N/A
9	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	DATC	N/A
10	CH203 (GN-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS)	without A/C	N/A
10	CYT30 (GY-VT)	22	SWITCH - ECON CONTROL (ECO) +	N/A
11	CH205 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 4	without A/C	N/A
11	CH253 (WH-BN)	22	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	N/A
12	CE469 (BN)	22	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	N/A
12	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	without A/C	N/A
13	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	without A/C	N/A
13	VHA38 (VT-GY)	22	CTRL MOD. - REAR CLIMATE # MODE OUTPUT	N/A
14	CYT30 (GY-VT)	22	SWITCH - ECON CONTROL (ECO) +	without A/C	N/A
14	VHP01 (BU-GN)	22	CTRL MOD. - PTC HEATER # HEATER	N/A
15	VHS27 (WH-OG)	22	SENSOR - CUSHION TEMP. PASSENGER OR RIGHT	N/A
16	CHS29 (WH-BU)	16	SWITCH - SEAT HEATER FRONT DRIVER OR LEFT SIDE	N/A
17	CHS30 (GY-YE)	16	SWITCH - SEAT HEATER FRONT PASSENGER OR RIGHT SIDE	N/A
18	CH123 (VT-GN)	22	CTRL MOD. - BLOWER MOTOR RELAY	N/A
19	VH413 (WH-BU)	22	SENSOR - HUMIDITY	N/A
20	VHA25 (WH-BN)	22	CTRL MOD. - REAR CLIMATE # REAR BLOWER CONTROL	N/A
21	CH253 (WH-BN)	22	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	without A/C	N/A
21	VHP08 (GY-OG)	22	CTRL MOD. - PTC HEATER # REAR HEATER	N/A
22	CE469 (BN)	22	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	without A/C	N/A
22	CHP03 (GN-BN)	22	SWITCH - PTC HEATER	N/A
23	GD233 (BK)	18	GROUND - COWL SIDE/PILLAR A LEFT	LHD without A/C	N/A
23	GD238 (BK-WH)	18	GROUND - COWL SIDE/PILLAR A RIGHT	RHD without A/C	N/A
23	CLN17 (BN)	22	SWITCH - IP/SWITCH ILLUMINATION	N/A
24	RHS26 (VT-GY)	22	SENSOR - TEMP. DRIVER OR LEFT -	without A/C	N/A
24	VH416 (VT-GY)	22	SENSOR - SUN LOAD # LEFT	N/A
25	VH417 (YE-OG)	22	SENSOR - SUN LOAD # RIGHT	N/A
25	VHP01 (BU-GN)	22	CTRL MOD. - PTC HEATER # HEATER	without A/C	N/A
26	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	RHD without A/C	N/A
26	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	LHD without A/C	N/A
26	VH406 (VT-BN)	22	SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)	N/A
27	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1 / CLOSE (IF PLUS)	RHD without A/C	N/A
27	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2 / OPEN (IF PLUS)	LHD without A/C	N/A
27	RH103 (GY)	22	CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR -	N/A
28	GD233 (BK-BU)	18	GROUND - COWL SIDE/PILLAR A LEFT	LHD	N/A
28	GD238 (BK-WH)	18	GROUND - COWL SIDE/PILLAR A RIGHT	RHD	N/A
28	CH202 (BU-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS)	without A/C	N/A
29	CH204 (GY-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 3	without A/C	N/A
29	VH414 (GN-BU)	22	SENSOR - INCAR TEMP.	N/A
30	VHS26 (YE-OG)	22	SENSOR - CUSHION TEMP. DRIVER OR LEFT	N/A
