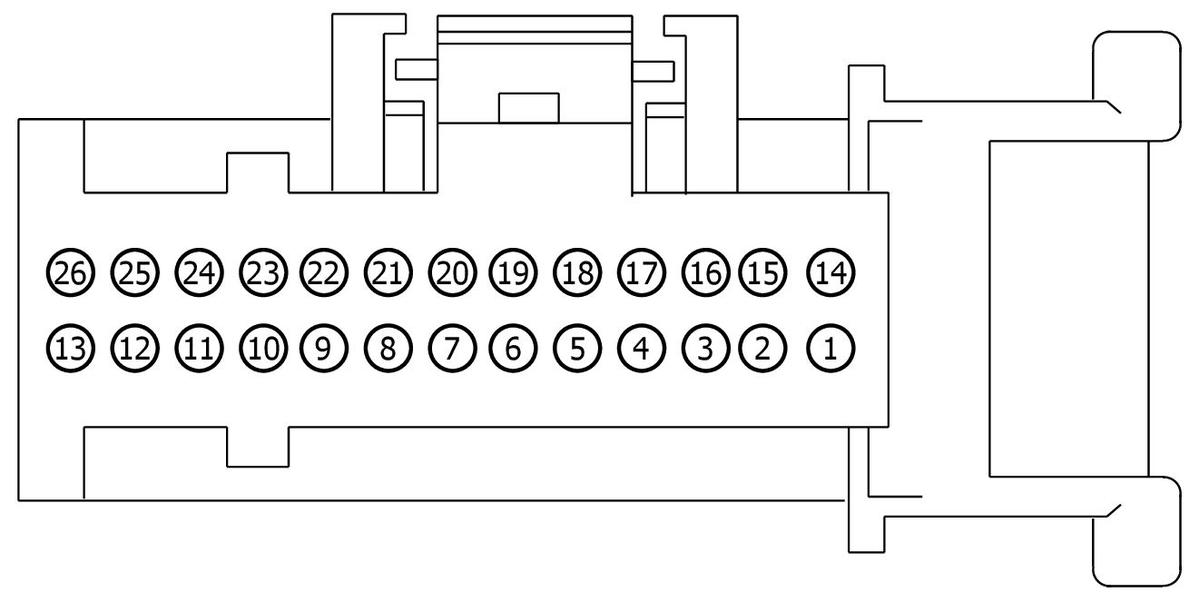

Connector End View (C228A) - HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C228A	HEATING, VENTILATION AND AIR CONDITIONING (HVAC) CONTROL MODULE	BK	14401	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CH232 (WH-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COMMON	N/A
1	CH248 (WH-OG)	18	CTRL MOD. - CLIMATE # DOOR MOTOR COMMON IGNITION FEED	DATC	N/A
2	CH201 (BN-BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COMMON	N/A
2	CH212 (BU-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS)	DATC	N/A
3	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	N/A
3	CH213 (BN-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS)	DATC	N/A
4	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	N/A
4	CH214 (GY-VT)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 3	DATC	N/A
5	CH215 (WH)	18	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 4	N/A
6	CH238 (YE-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS)	N/A
7	CH239 (BU-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS)	DATC	N/A
7	RH119 (YE-VT)	22	CTRL MOD. - CLIMATE # SENSOR A/C EVAPORATOR TEMPERATURE	N/A
8	CH240 (GN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 3	N/A
9	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	N/A
9	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	N/A
9	CH241 (GY-BN)	18	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 4	DATC	N/A
10	CH202 (BU-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS)	DATC	N/A
10	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1 / CLOSE (IF PLUS)	LHD	N/A
10	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2 / OPEN (IF PLUS)	RHD	N/A
11	CH203 (GN-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS)	N/A
12	CH204 (GY-OG)	18	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 3	DATC	N/A
12	CH205 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 4	N/A
13	CH205 (BN-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 4	DATC	N/A
13	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
14	CH209 (BN-YE)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 3	DATC	N/A
14	SBP21 (GY-RD)	20	FUSE - 21 OR CIRCUIT BREAKER	N/A
15	CH206 (YE-VT)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON	N/A
15	CH208 (GN-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	DATC - LHD	N/A
15	CH210 (VT-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 4	DATC - RHD	N/A
16	CH207 (BU-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)	DATC - RHD	N/A
16	CH209 (BN-YE)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 3	DATC - LHD	N/A
16	CH210 (VT-WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 4	N/A
17	CH208 (GN-OG)	18	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)	DATC - RHD	N/A
17	CH209 (BN-YE)	22	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 3	N/A
17	CH210 (VT-WH)	18	CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 4	DATC - LHD	N/A
18	GD233 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A LEFT	LHD	N/A
18	GD238 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A RIGHT	RHD	N/A
18	CH228 (YE-GY)	22	CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 1 / CLOSE (IF PLUS)	DATC	N/A
19	CH229 (WH-BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 2 / OPEN (IF PLUS)	N/A
20	CH230 (GN-BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 3	N/A
21	CH231 (GY-YE)	18	CTRL MOD. - CLIMATE # DOOR MOTOR DEFROST COIL 4	N/A
22	CAX13 (YE-OG)	22	SWITCH - TAXI REAR CLIMATE HEAD ACTIVATION/DEACTIVATION	N/A
22	CH235 (BU)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 3	RHD	N/A
22	CH236 (WH)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 4	LHD	N/A
23	CH233 (VT-BN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 1 / CLOSE (IF PLUS)	REAR AIR CONDITIONING	N/A
23	CH234 (YE-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. COIL 2 / OPEN (IF PLUS)	N/A
23	RAX13 (BU-GY)	22	CTRL MOD. - CLIMATE # TAXI REAR CLIMATE HEAD ACTIVATION SWITCH	REAR AIR CONDITIONING	N/A
24	CH202 (BU-GN)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS)	N/A
24	VH412 (YE-GY)	22	SENSOR - DISCHARGE TEMP. # RIGHT 2ND (RIGHT FRONT FLOOR)	DATC	N/A
25	CH204 (GY-OG)	22	CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 3	N/A
25	VH410 (GY-BU)	22	SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR)	DATC	N/A
26	RH104 (BU-BN)	22	CTRL MOD. - CLIMATE # SENSOR RETURN	DATC	N/A
26	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
