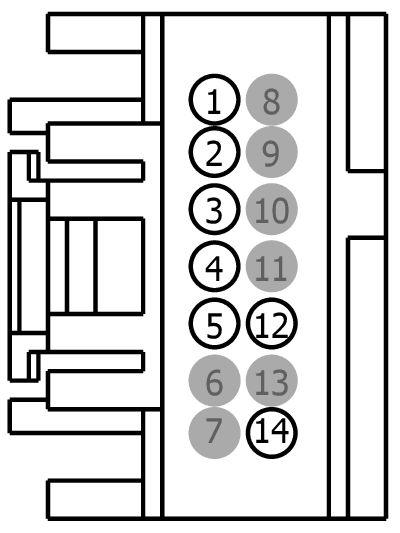

Connector End View (C226A) - STEERING COLUMN CONTROL MODULE (SCCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C226A	STEERING COLUMN CONTROL MODULE (SCCM)	GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBP22 (BN-RD)	22	FUSE - 22 OR CIRCUIT BREAKER	N/A
2	VX107 (YE-GY)	22	CTRL MOD. - LIN BUS # STEERING WHEEL CONTROL MODULE 1	N/A
3	CRW15 (BN-WH)	22	CTRL MOD. - FRONT WIPER HIGH	N/A
4	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
5	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	N/A
13	*	*	Not Used	N/A
14	GD238 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A RIGHT	RHD	N/A
14	GD233 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A LEFT	LHD	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1583

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JEC

Gauge:

20

Pin material:

Silver

Cavities:

14

Vehicle Uses:

• Lamp - Overhead Console
• Module - Power Steering
• Module - Seat Memory
• Radio
• Radio - Amplifier
• Switch - Moon Roof/Sun Roof

Pigtail Kit Part Number WPT-974

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JEB

Gauge:

18

Pin material:

Silver

Cavities:

14

Vehicle Uses:

• Lamp - Overhead Console
• Module - Seat Memory
• Radio
• Radio - Amplifier
• Switch - Moon Roof/Sun Roof
