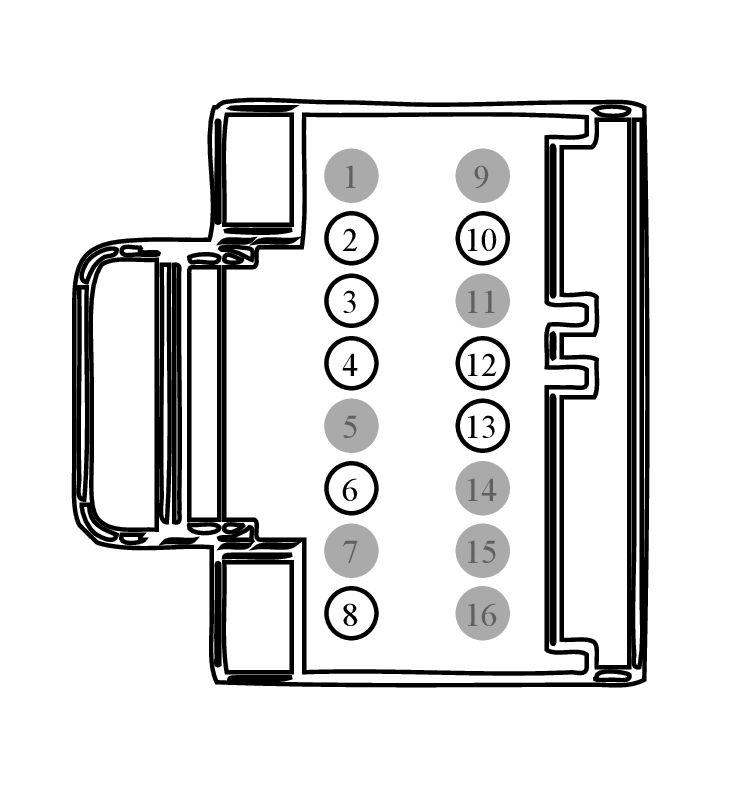

Connector End View (C220) - INSTRUMENT PANEL CLUSTER (IPC) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C220	INSTRUMENT PANEL CLUSTER (IPC) MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	RMC32 (GN-BU)	22	CTRL MOD. - SENSOR FUEL LEVEL	N/A
3	GD238 (BK-WH)	18	GROUND - COWL SIDE/PILLAR A RIGHT	RHD	N/A
3	GD233 (BK-GY)	18	GROUND - COWL SIDE/PILLAR A LEFT	LHD	N/A
4	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT	N/A
5	*	*	Not Used	N/A
6	CCA15 (YE-GY)	22	SWITCH - IVD/TCS DISABLE	N/A
7	*	*	Not Used	N/A
8	SBP22 (BN-RD)	22	FUSE - 22 OR CIRCUIT BREAKER	N/A
8	SBP22 (BN-RD)	18	FUSE - 22 OR CIRCUIT BREAKER	N/A
9	*	*	Not Used	N/A
10	VMC11 (YE-VT)	22	SENSOR - FUEL LEVEL (FLI)	N/A
11	*	*	Not Used	N/A
12	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	N/A
13	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	N/A
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1560

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-APA

Gauge:

20

Pin material:

Tin

Cavities:

16

Vehicle Uses:

• Instrument Cluster
• Module - Seat Memory
• Module - Upfitter Interface
• Radio - Amplifier
