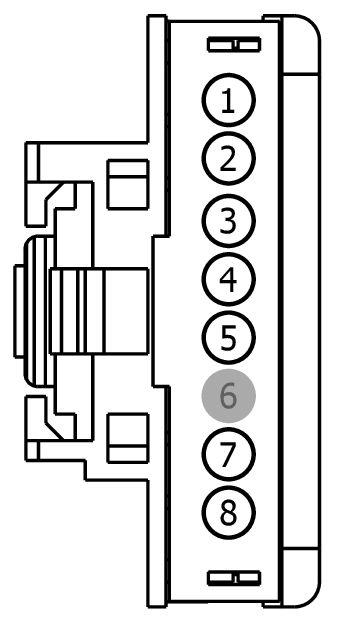

Connector End View (C218A) - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218A	CLOCKSPRING	YE	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CR101 (VT-BN)	20	CTRL MOD. - AIR BAG DRIVER 1+	N/A
2	RR101 (YE-GN)	20	CTRL MOD. - AIR BAG DRIVER 1 -	N/A
3	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	FNA	N/A
4	GD233 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT	FNA - LHD	N/A
4	GD238 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A RIGHT	FNA - RHD	N/A
4	RRH02 (GN-WH)	22	CTRL MOD. - SWITCH HORN	FOE	N/A
5	GD233 (BK)	20	GROUND - COWL SIDE/PILLAR A LEFT	FOE - LHD	N/A
5	GD238 (BK-WH)	20	GROUND - COWL SIDE/PILLAR A RIGHT	FOE - RHD	N/A
6	*	*	Not Used	N/A
7	CR102 (BU)	20	CTRL MOD. - AIR BAG DRIVER 2 +	N/A
8	RR102 (WH)	20	CTRL MOD. - AIR BAG DRIVER 2 -	N/A

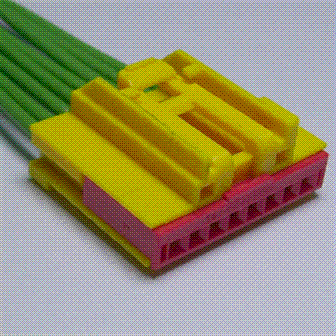

Available Pigtail Kits

Pigtail Kit Part Number WPT-1397

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-DB

Gauge:

20

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Clockspring
• Module - Power Steering
