Connector End View (C212) - INLINE

Inline: Description Color Harness Base Part # Service Pigtail
C212 INLINE GN 14290/91A00014401 Not Available
Terminal Part Number  Service Part Number  Size

MALE

Harness

14290/91A000

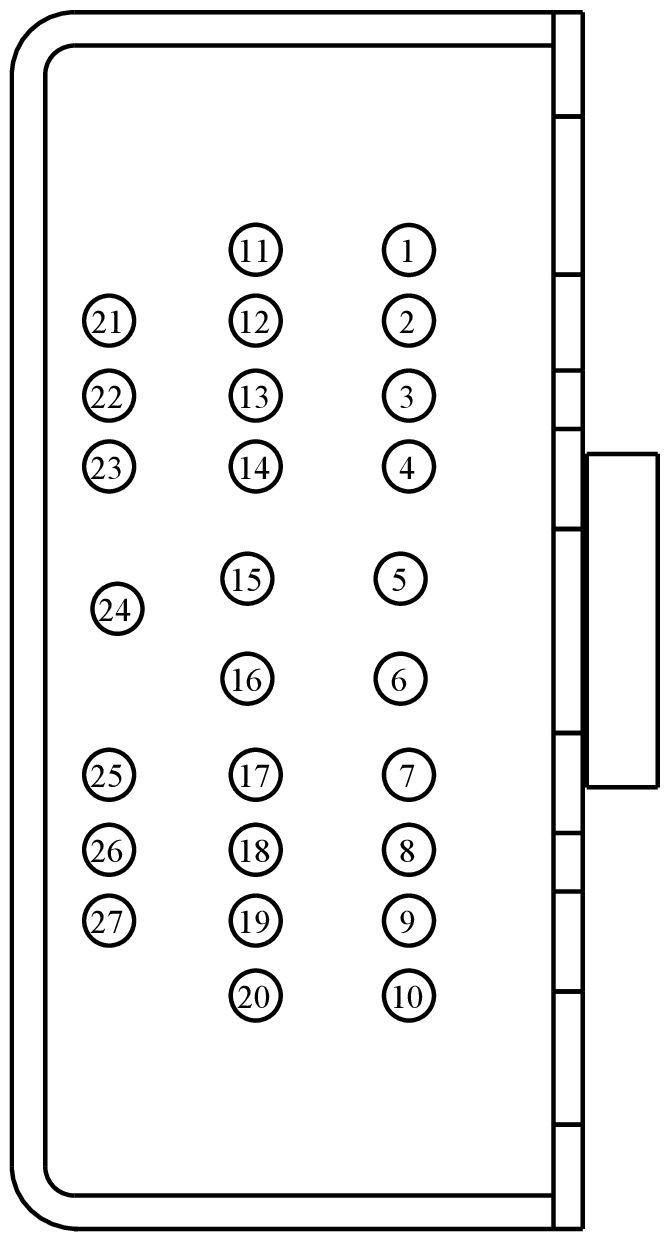

GFDWR129486Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 VDB25 (GN-OG) 20 N/A
2 VDB26 (GY-BU) 20 N/A
3 VLF22 (VT-GN) 20 N/A
3 VR214 (WH-BU) 20 N/A
4 CBB22 (GN-OG) 17 N/A
4 RR130 (GN-BU) 20 N/A
5 CBB10 (YE-OG) 14 N/A
6 SBB48 (VT-RD) 16 N/A
7 CBB12 (GN-WH) 22 N/A
8 CBB60 (YE-VT) 17 N/A
9 CBB16 (BU-GN) 17 N/A
10 CRW15 (BN-WH) 20 N/A
11 GD120 (BK-GN) 16 N/A
12 CH123 (VT-GN) 20 N/A
13 VMF05 (GY-BU) 20 N/A
14 VMF04 (BN-BU) 20 N/A
15 CBB11 (BN) 14 N/A
16 CBB20 (YE-VT) 14 N/A
17 SBB44 (GN-RD) 20 N/A
18 RR129 (YE-GY) 20 N/A
18 RR129 (YE-GY) 20 91A000 N/A
18 RR173 (GN-BN) 20 N/A
19 CR129 (BN-GN) 20 91A000 N/A
19 CR173 (WH-BU) 20 N/A
19 VR213 (VT-GN) 20 N/A
20 CBB17 (BN-GN) 22 N/A
21 CET43 (GY) 20 N/A
22 CET42 (GN-VT) 20 N/A
23 SBB38 (BN-RD) 20 N/A
24 CBB89 (VT-GY) 12 N/A
25 VDB06 (GY-OG) 20 N/A
26 VDB07 (VT-OG) 20 N/A
27 RE406 (GY-VT) 20 N/A
27 RE407 (YE-VT) 20 N/A

FEMALE

Harness

14401

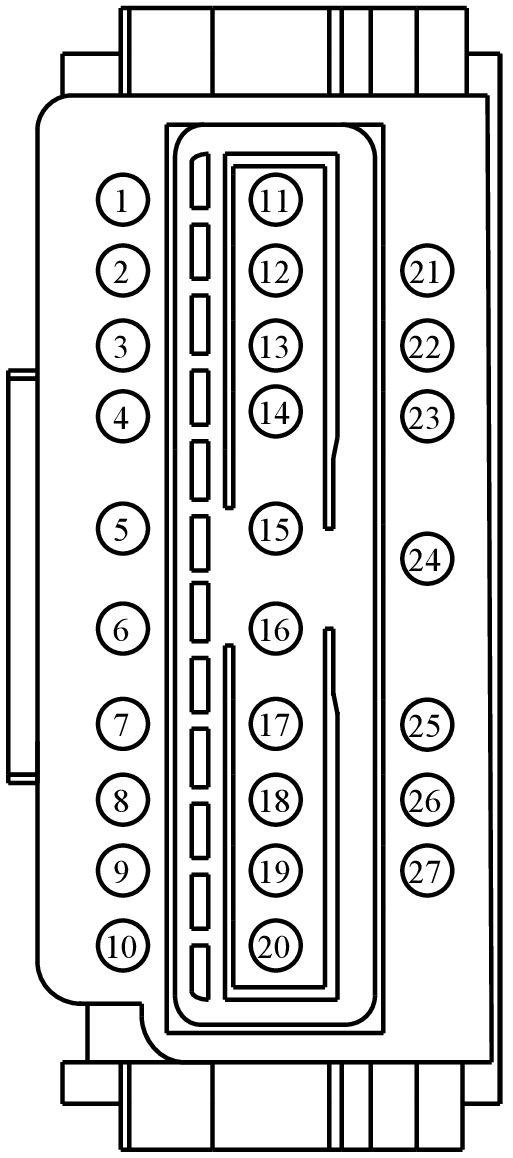

GFDWR129487Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 VDB25 (GN-OG) 22 N/A
2 VDB26 (GY-BU) 22 N/A
3 VLF22 (VT-GN) 20 N/A
3 VLF22 (YE) 20 N/A
3 VR214 (WH-BU) 20 N/A
4 CBB22 (GN-OG) 20 N/A
4 RR130 (GN-BU) 20 N/A
5 CBB10 (YE-OG) 14 N/A
6 SBB48 (VT-RD) 16 N/A
7 CBB12 (GN-WH) 22 N/A
7 VRW06 (GN-WH) 22 N/A
8 CBB60 (YE-VT) 17 N/A
9 CBB16 (BU-GN) 17 N/A
10 CRW15 (BN-WH) 22 N/A
11 GD120 (BK-GN) 16 N/A
11 VHF04 (YE-BU) 20 N/A
12 CH123 (VT-GN) 22 N/A
13 VMF05 (GY-BU) 22 N/A
14 VMF04 (BN-BU) 22 N/A
15 CBB11 (BN) 14 N/A
16 CBB20 (YE-VT) 14 N/A
17 SBB44 (GN-RD) 20 N/A
18 RR129 (YE-GY) 20 N/A
18 RR173 (GN-BN) 20 N/A
18 RR173 (GN-BU) 20 N/A
19 CR173 (WH-BU) 20 N/A
19 VR213 (VT-GN) 20 N/A
20 CBB17 (BN-GN) 22 N/A
21 CET43 (GY) 22 N/A
22 CET42 (GN-VT) 22 N/A
23 CE302 (YE-BU) 20 N/A
23 SBB38 (BN-RD) 20 N/A
24 CBB13 (GY-BN) 12 N/A
24 CBB89 (BU-WH) 12 N/A
24 CBB89 (VT-GY) 12 N/A
25 VDB06 (GY-OG) 22 N/A
26 VDB07 (VT-OG) 22 N/A
27 RET42 (WH-BN) 22 N/A
