Connector End View (C211) - INLINE

Inline: Description Color Harness Base Part # Service Pigtail
C211 INLINE BK 14290/91A00014A005 Not Available
Terminal Part Number  Service Part Number  Size

MALE

Harness

14290/91A000

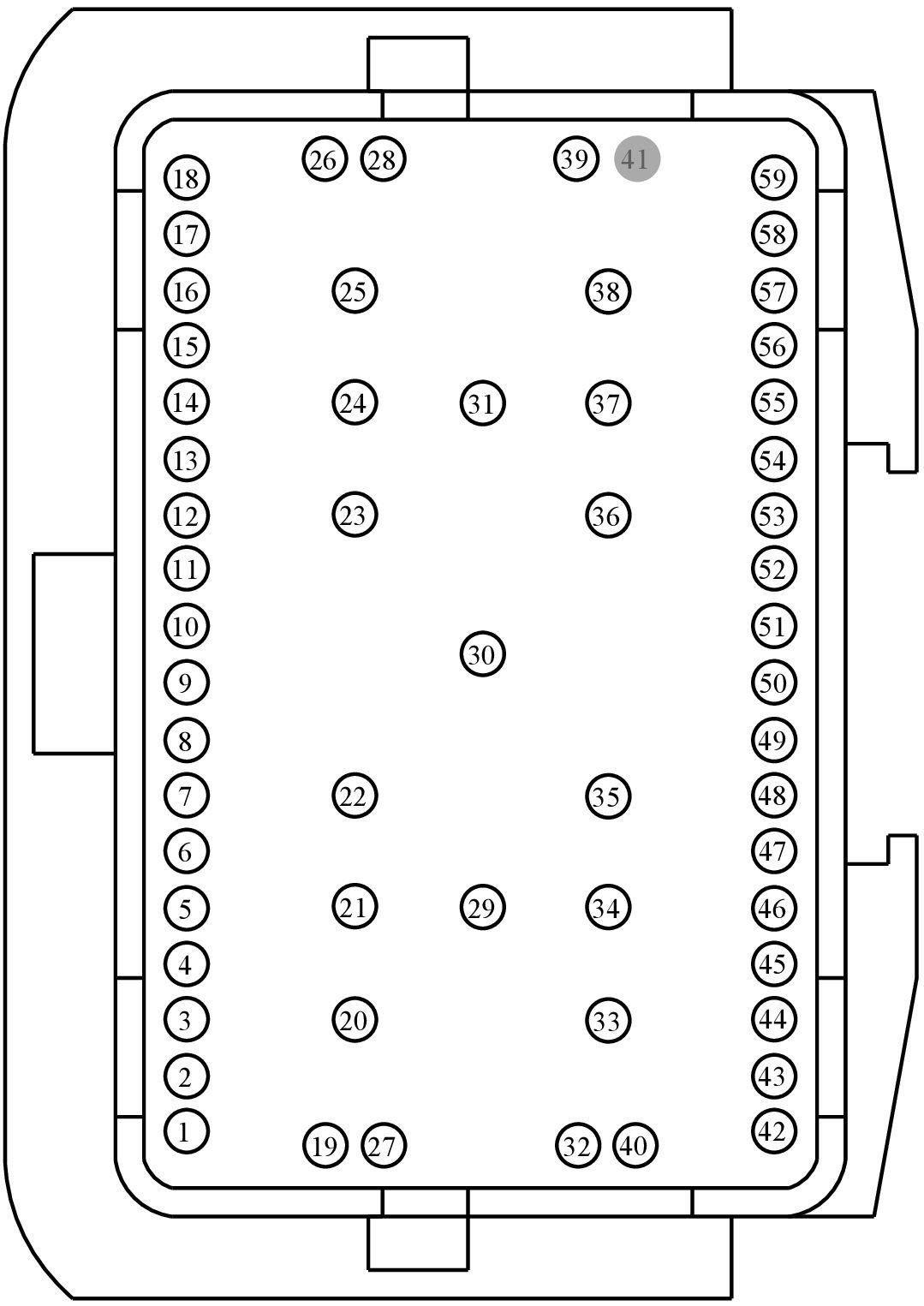

GFDWR129484Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 CPL38 (WH-OG) 20 N/A
2 VE225 (YE-OG) 20 N/A
3 VE253 (YE-GY) 20 N/A
4 VE254 (BN-WH) 20 N/A
5 VMP13 (BU-OG) 20 N/A
6 VMP10 (WH-BU) 20 N/A
7 VDB25 (GN-OG) 20 N/A
8 VDB26 (GY-BU) 20 N/A
9 VCA04 (BU-OG) 20 N/A
10 RCA18 (BN-GN) 20 N/A
11 VCA06 (WH-OG) 20 N/A
12 RCA20 (BN) 20 N/A
13 VMP21 (WH-BN) 20 N/A
14 CPL10 (GN-WH) 20 N/A
15 VDB05 (WH) 20 N/A
16 VDB04 (BU) 20 N/A
17 VDB06 (GY-OG) 20 N/A
18 VDB07 (VT-OG) 20 N/A
19 LMP06 (VT-GY) 20 N/A
20 CBB61 (BU-GY) 18 N/A
21 SBB33 (RD) 16 N/A
21 SBB37 (GY-RD) 18 N/A
22 CBB04 (VT-RD) 14 N/A
23 CPL53 (WH-OG) 20 N/A
24 CHF01 (BN-BU) 16 N/A
24 SBB42 (YE-RD) 12 N/A
25 CBB25 (WH-OG) 14 N/A
26 CBB66 (BU-WH) 18 N/A
26 CBB66 (BU-WH) 20 N/A
26 LE230 (BN-BU) 20 N/A
27 RE823 (GY-YE) 20 N/A
27 VE922 (VT-GN) 20 N/A
28 CBB27 (GN-BN) 18 N/A
28 CE114 (GN-BU) 18 N/A
29 SBB47 (WH-RD) 12 N/A
30 CBB26 (BU-WH) 14 N/A
31 SBB36 (GN-RD) 14 N/A
32 CR167 (YE-VT) 20 N/A
32 VE761 (BN-BU) 20 N/A
33 CBB90 (YE-OG) 14 N/A
34 CBB85 (YE) 14 N/A
35 CBB13 (GY-BN) 17 N/A
36 CBB21 (BU-GY) 14 N/A
37 SBB34 (YE-RD) 12 N/A
38 SBB45 (GY-RD) 14 N/A
39 CBB79 (VT-WH) 20 N/A
40 GD124 (BK-GN) 18 N/A
41 * * N/A
42 VE253 (YE-GY) 20 N/A
43 VE254 (BN-WH) 20 N/A
44 RE407 (YE-VT) 18 N/A
44 RE407 (YE-VT) 20 N/A
44 VE823 (BU-BN) 20 N/A
45 VMP20 (GY-OG) 20 N/A
46 CE420 (GY-VT) 18 N/A
46 CE611 (GN-BN) 20 N/A
47 VMP11 (BU-GN) 20 N/A
48 VE518 (BN-WH) 20 N/A
49 RMP06 (YE-OG) 20 N/A
50 VMP12 (BU-GY) 20 N/A
51 CRW02 (GY-BU) 20 N/A
52 VE350 (GY) 20 N/A
53 CBB68 (GY-VT) 18 N/A
53 VE351 (VT-OG) 20 N/A
54 CPL30 (BU-BN) 20 N/A
55 CBP06 (WH-BU) 20 N/A
56 CPL17 (YE-VT) 20 N/A
57 VDN14 (YE-VT) 22 N/A
58 SBP19 (BU-RD) 22 N/A
59 CBB61 (BU-GY) 18 N/A

FEMALE

Harness

14A005

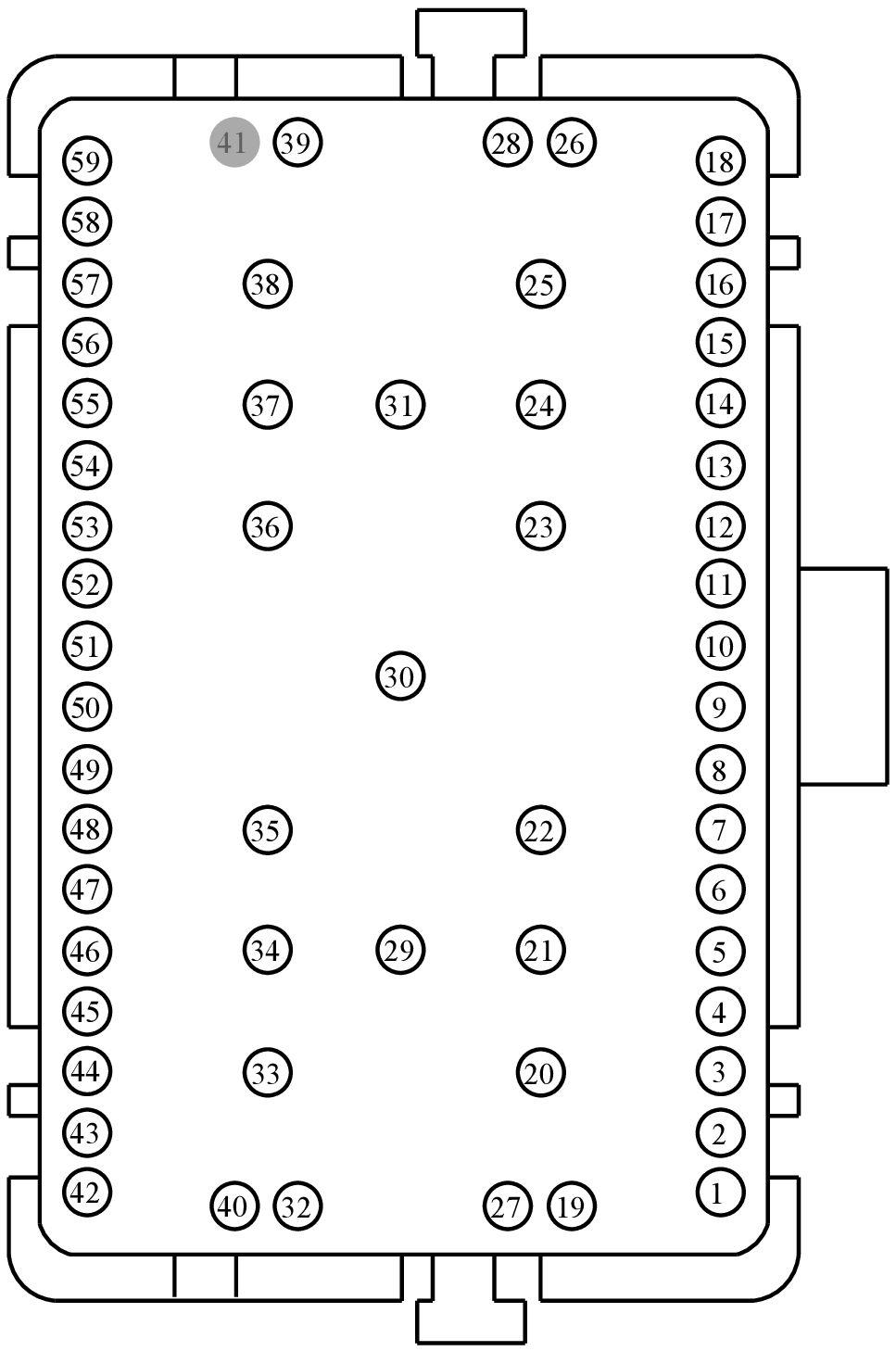

GFDWR129485Courtesy of FORD MOTOR COMPANY
Pin  Circuit  Gauge  Qualifier  Terminal Part Number
1 CPL38 (WH-OG) 20 N/A
2 VE225 (YE-OG) 20 N/A
3 VE253 (YE-GY) 22 N/A
4 VE254 (BN-WH) 22 N/A
5 VMP13 (BU-OG) 22 N/A
6 VMP10 (WH-BU) 22 N/A
7 VDB25 (GN-OG) 20 N/A
8 VDB26 (GY-BU) 20 N/A
9 VCA04 (BU-OG) 20 N/A
10 RCA18 (BN-GN) 20 N/A
11 VCA06 (WH-OG) 20 N/A
12 RCA20 (BN) 20 N/A
13 VMP21 (WH-BN) 22 N/A
14 CPL10 (GN-WH) 20 N/A
15 VDB05 (WH) 22 N/A
16 VDB04 (BU) 22 N/A
17 VDB06 (GY-OG) 22 N/A
18 VDB07 (VT-OG) 22 N/A
19 LMP06 (VT-GY) 22 N/A
20 CBB61 (BU-GY) 16 N/A
21 SBB33 (RD) 16 N/A
21 SBB37 (GY-RD) 18 N/A
22 CBB04 (VT-RD) 14 N/A
23 CPL53 (WH-OG) 17 N/A
24 CHF01 (BN-BU) 16 N/A
24 SBB42 (YE-RD) 12 N/A
25 CBB25 (WH-OG) 14 N/A
26 CBB66 (BU-WH) 18 N/A
26 LE230 (BN-BU) 20 N/A
27 RE823 (GY-YE) 20 N/A
27 VE922 (VT-GN) 20 N/A
28 CBB27 (GN-BN) 18 N/A
28 CE114 (GN-BU) 18 N/A
29 SBB47 (WH-RD) 12 N/A
30 CBB26 (BU-WH) 14 N/A
31 SBB36 (GN-RD) 14 N/A
32 CR167 (YE-VT) 22 N/A
32 VE761 (BN-BU) 20 N/A
33 CBB90 (YE-OG) 14 N/A
34 CBB85 (YE) 14 N/A
35 CBB13 (GY-BN) 16 N/A
36 CBB21 (BU-GY) 14 N/A
37 SBB34 (YE-RD) 12 N/A
38 SBB45 (GY-RD) 14 N/A
39 CBB79 (VT-WH) 20 N/A
40 GD124 (BK-GN) 18 N/A
41 * * N/A
42 VE253 (YE-GY) 22 N/A
43 VE254 (BN-WH) 22 N/A
44 RE407 (YE-VT) 20 N/A
44 VE823 (BU-BN) 20 N/A
45 VMP20 (GY-OG) 22 N/A
46 CE420 (GY-BU) 18 N/A
46 CE611 (GN-BN) 20 N/A
47 VMP11 (BU-GN) 22 N/A
48 VE518 (BN-WH) 20 N/A
49 RMP06 (YE-OG) 22 N/A
50 VMP12 (BU-GY) 22 N/A
51 CRW02 (GY-BU) 20 N/A
52 VE350 (GY) 22 N/A
53 CBB68 (GY-VT) 18 N/A
53 VE351 (VT-OG) 22 N/A
54 CPL30 (BU-BN) 20 N/A
55 CBP06 (WH-BU) 20 N/A
56 CPL17 (YE-VT) 20 N/A
57 VDN14 (YE-VT) 20 N/A
57 VDN14 (YE-VT) 22 N/A
58 SBP19 (BU-RD) 22 N/A
59 CBB61 (BU-GY) 20 N/A
