Connector End View (C192) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C192	INLINE	BK	12C50814290/91A000	See Below

Terminal Part Number	Service Part Number	Size

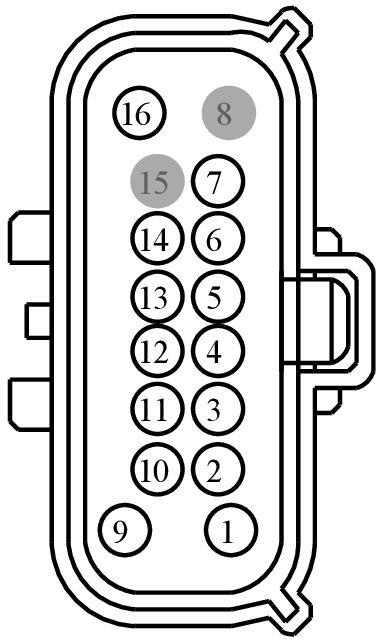

MALE

Harness

12C508

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBK04 (VT)	14	N/A
1	CBK04 (VT)	16	N/A
2	CBB69 (WH-VT)	17	N/A
2	CBK03 (GY)	17	N/A
3	CE113 (WH-BN)	18	N/A
3	CET40 (GN-OG)	20	N/A
4	CE908 (BU-BN)	18	N/A
4	RE938 (BU-GY)	18	N/A
4	VE758 (BU-BN)	20	N/A
5	VE824 (YE-GN)	18	N/A
6	RE407 (YE-VT)	18	N/A
6	RE749 (GY-BU)	20	N/A
6	VE731 (YE-GN)	18	N/A
7	LE424 (YE-BU)	18	N/A
7	RE406 (GY-VT)	18	N/A
7	VE749 (YE-VT)	20	N/A
8	*	*	N/A
9	CBK01 (BU)	18	N/A
10	CDC34 (WH-OG)	18	N/A
10	CET91 (WH)	18	N/A
11	VDB05 (WH)	18	N/A
12	GD121 (BK-YE)	18	N/A
12	VDB04 (WH-BU)	18	N/A
13	CE513 (VT-GN)	20	N/A
13	VET27 (BN-YE)	18	N/A
14	CE151 (YE)	20	N/A
15	VDC46 (BU-BN)	20	N/A
16	CBB68 (GY-VT)	17	N/A
16	CBK02 (GN)	16	N/A
16	CBK02 (GN)	17	N/A
	16	CBK02 (GN)	18	N/A

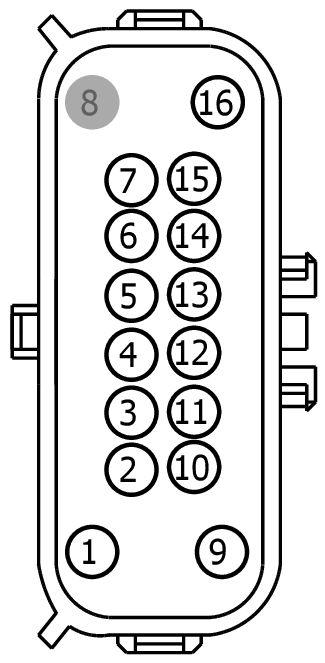

FEMALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB70 (YE-BU)	14	N/A
2	CBB69 (WH-VT)	18	N/A
3	CE113 (WH-BN)	18	N/A
3	CET40 (GN-OG)	20	N/A
4	RE938 (BU-GY)	20	N/A
4	VE749 (YE-VT)	20	N/A
5	VE824 (YE-GN)	20	N/A
6	RE407 (YE-VT)	20	N/A
6	RE749 (GY-BU)	20	N/A
6	VE731 (YE-GN)	18	N/A
7	LE424 (YE-GN)	20	N/A
7	RE242 (GN)	18	N/A
7	VE758 (BU-BN)	20	N/A
8	*	*	N/A
9	CBB73 (WH-BN)	18	N/A
9	CBB73 (WH-BN)	20	N/A
10	CBB58 (GY-OG)	20	N/A
10	CET91 (YE-OG)	18	N/A
11	VDB05 (WH)	20	N/A
12	GD121 (BK-YE)	18	N/A
12	VDB04 (BU)	20	N/A
13	CE513 (VT-GN)	20	N/A
13	VET27 (BN-YE)	20	N/A
14	CE151 (YE)	20	N/A
15	*	*	N/A
16	CBB68 (GY-VT)	16	N/A
16	CBB68 (GY-VT)	17	N/A
	16	CBB68 (GY-VT)	18	N/A

Available Pigtail Kits

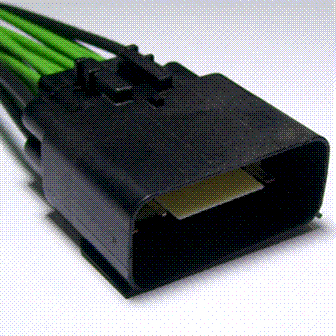

Pigtail Kit Part Number WPT-1393

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-KB

Gauge:

14 18

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• For Mating Connector Refer To WPT-1142

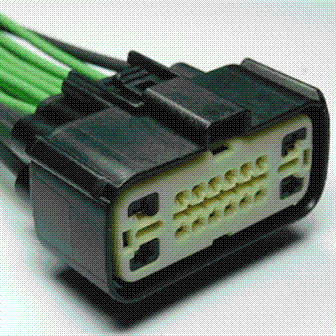

Pigtail Kit Part Number WPT-1541

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-KA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• In-Line - Auxiliary Engine Connector
• Module - Glow Plug
