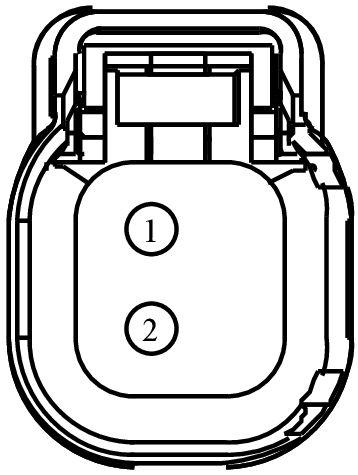

Connector End View (C181) - FUEL INJECTOR 1

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C181	FUEL INJECTOR 1	BK	12C508	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE205 (GN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	N/A
2	CBK01 (BU)	20	FUSE - 1 OR CIRCUIT BREAKER (VPWR F)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1051

Courtesy of FORD MOTOR COMPANY

Service Part Number:

5U2Z-14S411-ZB

Gauge:

16

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
• Horn
• Switch - Backup Lamp
• Switch - Hood Ajar
