Connector End View (C175E) - POWERTRAIN CONTROL MODULE (PCM)

Connector: Description Color Harness Base Part # Service Pigtail
C175E POWERTRAIN CONTROL MODULE (PCM) BK 12C508 part# N/A Not Available

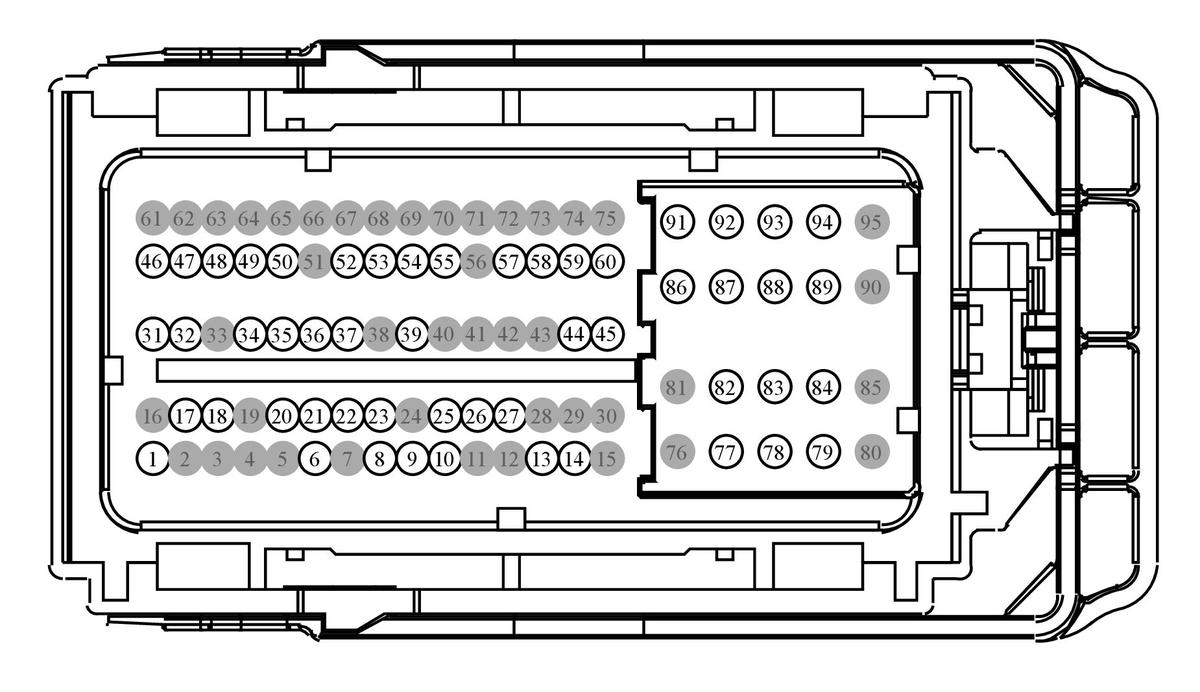

GFDWR129473Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 * * Not Used N/A
5 * * Not Used N/A
6 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) N/A
7 * * Not Used N/A
8 LE134 (YE) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) N/A
9 VE819 (GN-VT) 20 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2-PS) N/A
10 VE818 (BN) 20 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 CE908 (BU-BN) 18 SWITCH - ENGINE OIL LEVEL (EOL) N/A
14 CE113 (WH-BN) 18 CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP) N/A
15 * * Not Used N/A
16 * * Not Used N/A
17 LE111 (VT-GN) 20 CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) N/A
18 CBK01 (BU) 18 FUSE - 1 OR CIRCUIT BREAKER (VPWR F) N/A
19 * * Not Used N/A
20 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR -P) N/A
21 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) N/A
22 RET24 (BN-BU) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) N/A
23 RE134 (BU-OG) 20 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) N/A
24 * * Not Used N/A
25 CMC24 (GY) 18 SWITCH - OIL PRESSURE N/A
26 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) N/A
27 VET33 (WH-OG) 18 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 * * Not Used N/A
31 CE104 (GN) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 4) (EGRMC) N/A
32 VE803 (BU-GN) 20 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + N/A
33 * * Not Used N/A
34 LE423 (GN-VT) 20 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1) N/A
35 RE405 (GN-WH) 18 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A) N/A
36 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) N/A
37 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) N/A
38 * * Not Used N/A
39 VE712 (BU-GY) 20 SENSOR - CYLINDER HEAD TEMPERATURE (CHT) N/A
40 * * Not Used N/A
41 * * Not Used N/A
42 * * Not Used N/A
43 * * Not Used N/A
44 DE135 (WH) 20 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) D N/A
45 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) + N/A
46 CE103 (BU-BN) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 3) (EGRMC) N/A
47 CE102 (YE-BU) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 2) (EGRMC) (-) N/A
48 CE101 (WH-VT) 18 CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. MOTOR (STEPPER CONTR. 1) (EGRMC) (+) N/A
49 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) N/A
50 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) N/A
51 * * Not Used N/A
52 RE205 (YE-BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - N/A
53 RE207 (GN-VT) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - N/A
54 RE208 (BU) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - N/A
55 RE206 (BU-OG) 20 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - N/A
56 * * Not Used N/A
57 RE323 (WH-BN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - N/A
58 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] N/A
59 RE135 (GN-BN) 18 CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - N/A
60 VE711 (YE-VT) 18 SENSOR - CRANKSHAFT POSITION (CKPP) + N/A
61 * * Not Used N/A
62 * * Not Used N/A
63 * * Not Used N/A
64 * * Not Used N/A
65 * * Not Used N/A
66 * * Not Used N/A
67 * * Not Used N/A
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 * * Not Used N/A
73 * * Not Used N/A
74 * * Not Used N/A
75 * * Not Used N/A
76 * * Not Used N/A
77 CET10 (BU-GY) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] N/A
78 CET09 (YE-VT) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] N/A
79 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) N/A
80 * * Not Used N/A
81 * * Not Used N/A
82 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] N/A
83 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] N/A
84 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) N/A
85 * * Not Used N/A
86 CET18 (GY-YE) 20 CTRL MOD. - POWERTRAIN # SOLENOID SHIFT CONTROL LOW-SIDE 1 (SS1) N/A
87 CET06 (GN-BN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] N/A
88 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] N/A
89 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) N/A
90 * * Not Used N/A
91 CET25 (BU-GN) 20 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) N/A
92 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) N/A
93 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) N/A
94 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) N/A
95 * * Not Used N/A
