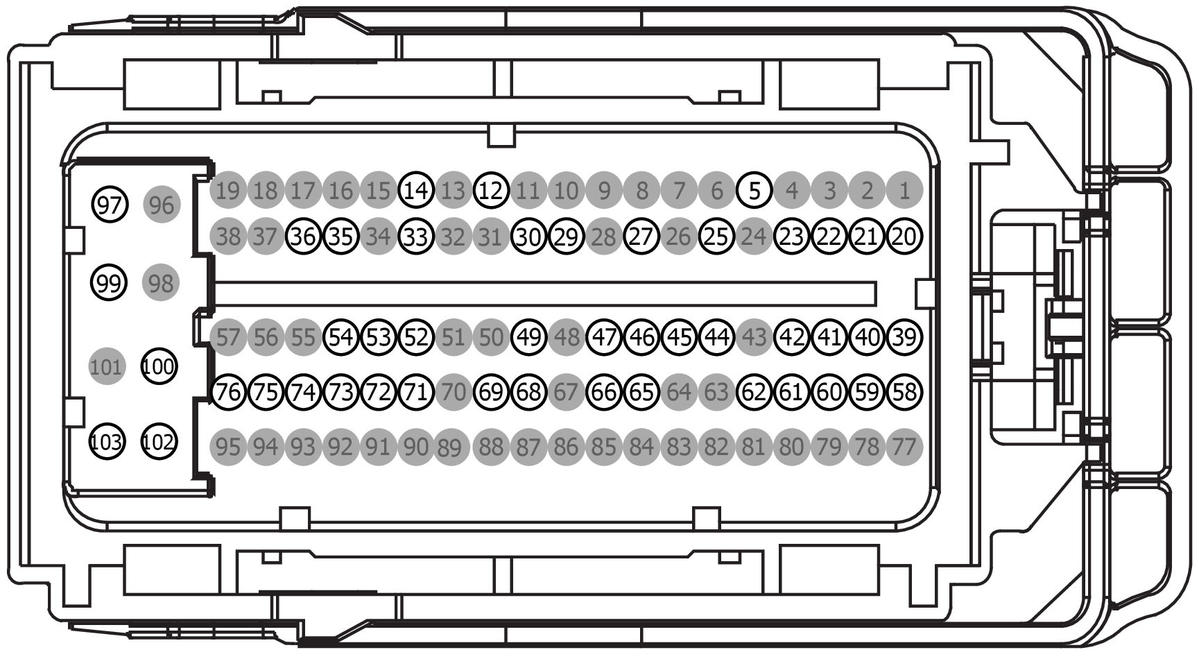

Connector End View (C175B) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C175B	POWERTRAIN CONTROL MODULE (PCM)	BK	14290/91A000	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	GD121 (BK-YE)	18	GROUND - FENDER FRONT LEFT # 2ND POINT	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	CES09 (VT-OG)	20	SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) +	N/A
13	*	*	Not Used	N/A
14	CCB08 (VT-WH)	20	SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	CE302 (YE-BU)	20	CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC)	N/A
21	CE436 (VT-OG)	20	CTRL MOD. -WAKE UP PCM	N/A
22	CET42 (GN-VT)	20	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	N/A
23	CET43 (GY)	20	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	N/A
24	*	*	Not Used	N/A
25	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
26	*	*	Not Used	N/A
27	VE518 (BN-WH)	20	MONITOR - FUEL PUMP (FPM)	N/A
28	*	*	Not Used	N/A
29	LE230 (BN-BU)	20	CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF)	N/A
30	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
34	*	*	Not Used	N/A
35	RE137 (YE-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN)	N/A
36	LE137 (BU-GY)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF)	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	CE114 (GN-BU)	18	CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT)	N/A
40	LE136 (GN-OG)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF)	N/A
41	CBB58 (GY-OG)	20	FUSE - 58 OR CIRCUIT BREAKER	N/A
42	CDC35 (BU-WH)	20	SWITCH - IGNITION # START	N/A
43	*	*	Not Used	N/A
44	VH433 (VT-OG)	20	TRANSDUCER - A/C PRESSURE (ACPT) +	N/A
45	VDC61 (VT-GN)	20	SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR	N/A
46	VE922 (VT-GN)	20	TRANSDUCER - FUEL TANK PRESSURE (FTPT)	N/A
47	VE750 (GN-BU)	20	SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)	N/A
48	*	*	Not Used	N/A
49	CE261 (GY-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES)	N/A
50	*	*	Not Used	N/A
51	*	*	Not Used	N/A
52	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	N/A
53	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
54	RE320 (BU)	18	CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN)	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	*	*	Not Used	N/A
58	CH302 (WH-BN)	20	CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR)	N/A
59	RE136 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN)	N/A
60	VE702 (BU-WH)	20	SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2)	N/A
61	VE701 (YE-OG)	20	SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1)	N/A
62	CDC12 (YE)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC)	N/A
63	*	*	Not Used	N/A
64	*	*	Not Used	N/A
65	VE225 (YE-OG)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC)	N/A
66	VE203 (YE-GY)	20	CTRL MOD. - POWERTRAIN # FAN CONTROL VARIABLE (FC-V)	N/A
67	*	*	Not Used	N/A
68	CDC54 (WH-GN)	20	CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS)	N/A
69	VE462 (WH-BN)	18	CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE	N/A
70	*	*	Not Used	N/A
71	RE242 (GN)	18	CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (HEGO_RTN)	N/A
72	VE731 (YE-GN)	18	SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12)	N/A
73	VE807 (YE-VT)	18	SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF)	N/A
74	VE181 (WH-GN)	20	CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1	N/A
75	VDB04 (BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	N/A
76	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	N/A
77	*	*	Not Used	N/A
78	*	*	Not Used	N/A
79	*	*	Not Used	N/A
80	*	*	Not Used	N/A
81	*	*	Not Used	N/A
82	*	*	Not Used	N/A
83	*	*	Not Used	N/A
84	*	*	Not Used	N/A
85	*	*	Not Used	N/A
86	*	*	Not Used	N/A
87	*	*	Not Used	N/A
88	*	*	Not Used	N/A
89	*	*	Not Used	N/A
90	*	*	Not Used	N/A
91	*	*	Not Used	N/A
92	*	*	Not Used	N/A
93	*	*	Not Used	N/A
94	*	*	Not Used	N/A
95	*	*	Not Used	N/A
96	*	*	Not Used	N/A
97	CBB67 (GN-BN)	16	FUSE - 67 OR CIRCUIT BREAKER	N/A
98	*	*	Not Used	N/A
99	CBB67 (GN-BN)	16	FUSE - 67 OR CIRCUIT BREAKER	N/A
100	GD121 (BK-YE)	16	GROUND - FENDER FRONT LEFT # 2ND POINT	N/A
101	*	*	Not Used	N/A
102	GD121 (BK-YE)	16	GROUND - FENDER FRONT LEFT # 2ND POINT	N/A
103	GD121 (BK-YE)	16	GROUND - FENDER FRONT LEFT # 2ND POINT	N/A
