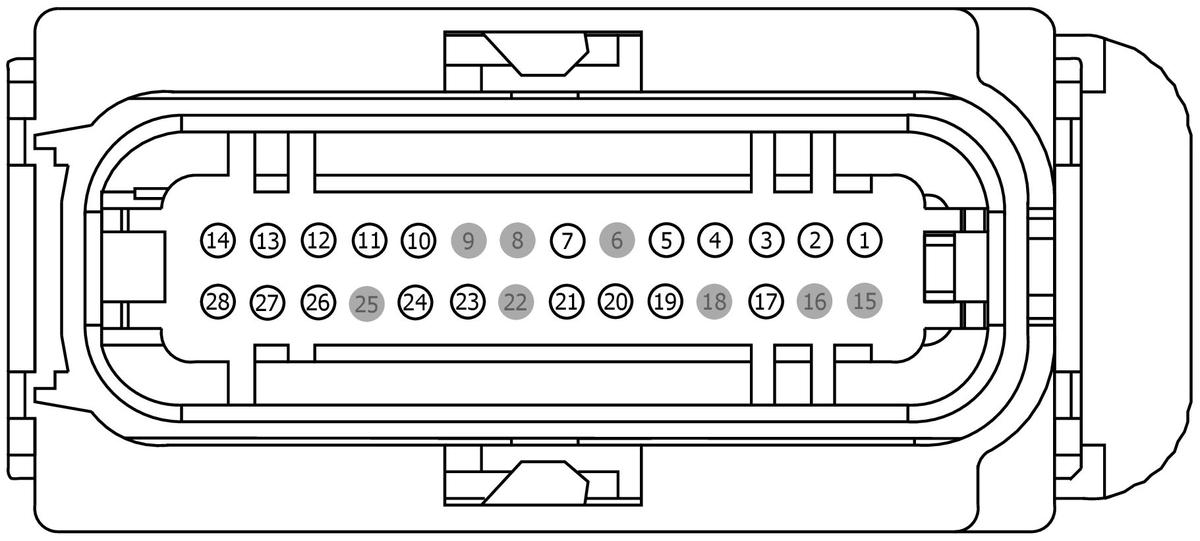

Connector End View (C168) - 8F35 TRANSMISSION

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C168	8F35 TRANSMISSION	14305			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CET97 (VT-GY)	20	CTRL MOD. - POWERTRAIN # SENSOR TRANSMISSION FLUID PRESSURE +	N/A
2	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	N/A
3	VET26 (BN-GN)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)	N/A
4	VET84 (BN-GN)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1)	N/A
5	VET81 (YE-GY)	20	SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2)	N/A
6	*	*	Not Used	N/A
7	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS]	N/A
11	CET50 (WH-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC)	N/A
12	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS]	N/A
13	CET51 (WH)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC)	N/A
14	CET25 (BU-GN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	LE425 (BU-BN)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (T-VREF)	N/A
18	*	*	Not Used	N/A
19	VET97 (VT-OG)	20	SENSOR - TRANSMISSION FLUID PRESSURE 1	N/A
20	VET98 (BN-YE)	20	SENSOR - TRANSMISSION FLUID PRESSURE 2	N/A
21	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	N/A
22	*	*	Not Used	N/A
23	CET94 (WH-OG)	20	CTRL MOD. - POWERTRAIN # ONE-WAY CLUTCH CONTROL HYDRAULIC	N/A
24	CET11 (GN-OG)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 7 (PC7) [EPC] [VFS]	N/A
25	*	*	Not Used	N/A
26	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS]	N/A
27	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS]	N/A
28	CET49 (BN)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2)	N/A
