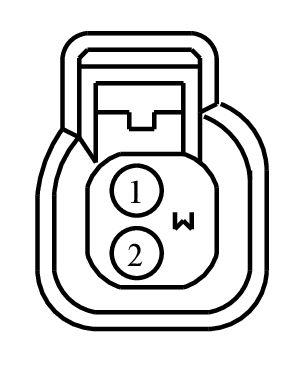

Connector End View (C150) - FRONT WHEEL SPEED SENSOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C150	FRONT WHEEL SPEED SENSOR LH	BK	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT	N/A
2	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1246

Courtesy of FORD MOTOR COMPANY

Service Part Number:

BU2Z-14S411-RA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Speed
