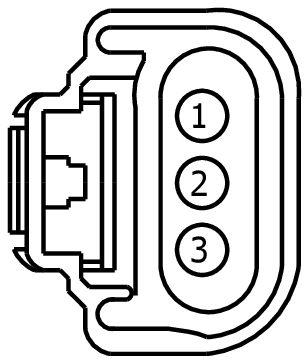

Connector End View (C149) - BRAKE BOOSTER VACUUM SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C149	BRAKE BOOSTER VACUUM SENSOR	GY	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VCA38 (BN)	20	SENSOR - BRAKE VACUUM SIGNAL 1	N/A
2	RCA37 (WH-BU)	20	CTRL MOD. - SENSOR BRAKE VACUUM -	N/A
3	LCA37 (YE-OG)	20	CTRL MOD. - SENSOR BRAKE VACUUM +	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1500

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AC

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Lamp - Headlamp - High/Low Beam
• Sensor - Brake Booster Travel
• Sensor - Brake Pressure
• Sensor - Brake Vacuum
• Sensor - Delta Pressure Feedback EGR
• Sensor - Fuel Tank Pressure Transducer
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Occupant Classification
