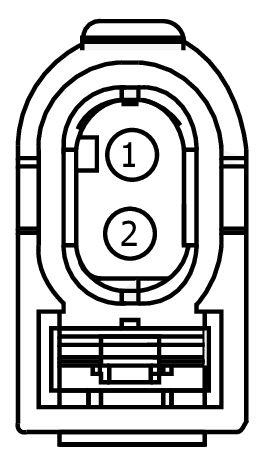

Connector End View (C148) - AUTO-START-STOP ACCUMULATOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C148	AUTO-START-STOP ACCUMULATOR	BK	14305	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CET91 (YE-OG)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE	N/A
2	CET99 (BU-GY)	20	CTRL MOD. - POWERTRAIN # SOLENOID TRANSMISSION HYDRAULIC INDICATOR (THASC)	N/A

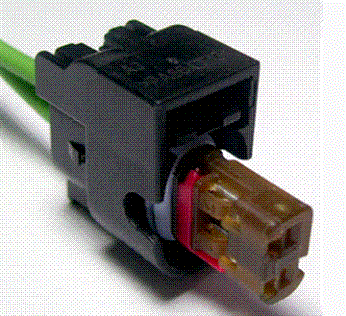

Available Pigtail Kits

Pigtail Kit Part Number WPT-1371

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ANA

Gauge:

18

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Fuel Injector
