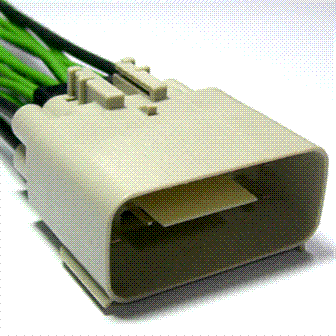

Connector End View (C146) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C146	INLINE	LT GY	14290/91A00014305	See Below

Terminal Part Number	Service Part Number	Size

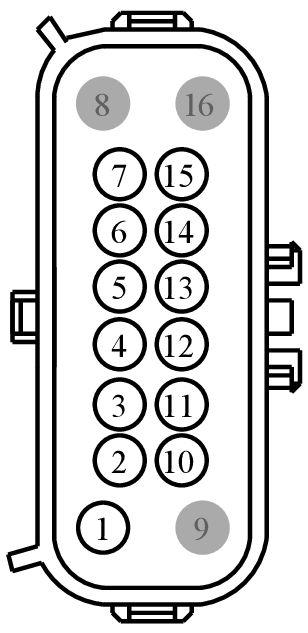

MALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB68 (GY-VT)	18	N/A
2	VE749 (YE-VT)	20	N/A
3	VE723 (GN-VT)	20	N/A
4	VE758 (BU-BN)	20	N/A
5	VE771 (WH-VT)	20	N/A
6	RE771 (GY-OG)	20	N/A
7	VE740 (VT-GY)	20	N/A
8	*	*	N/A
9	*	*	N/A
10	VE807 (YE-VT)	20	N/A
11	RE723 (WH-BU)	20	N/A
12	VE253 (YE-GY)	20	N/A
13	VE254 (BN-WH)	20	N/A
14	RE749 (GY-BU)	20	N/A
15	RE320 (BU)	20	N/A
	16	*	*	N/A

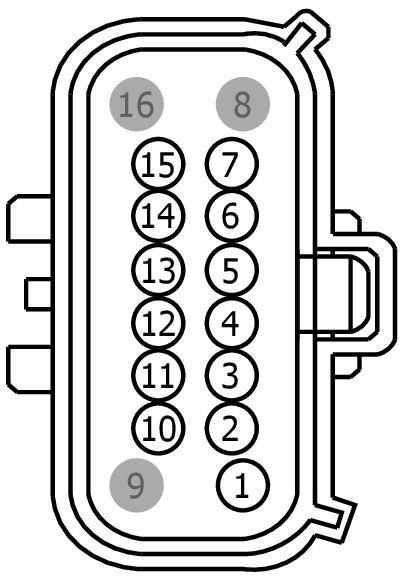

FEMALE

Harness

14305

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB68 (GY-VT)	20	N/A
2	VE749 (YE-VT)	20	N/A
3	VE723 (GN-VT)	20	N/A
4	VE758 (BU-BN)	20	N/A
5	VE771 (WH-VT)	20	N/A
6	RE771 (GY-OG)	20	N/A
7	VE740 (VT-GY)	20	N/A
8	*	*	N/A
9	*	*	N/A
10	VE807 (YE-VT)	20	N/A
11	RE723 (WH-BU)	20	N/A
12	VE253 (YE-GY)	20	N/A
13	VE254 (BN-WH)	20	N/A
14	RE749 (GY-BU)	20	N/A
15	RE320 (BU)	20	N/A
	16	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1092

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AKA

Gauge:

12 16

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1660

Service Part Number:

LU2Z-14S411-AHA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
