Connector End View (C144) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C144	INLINE	DK GY	17A61114290/91A000	See Below

Terminal Part Number	Service Part Number	Size

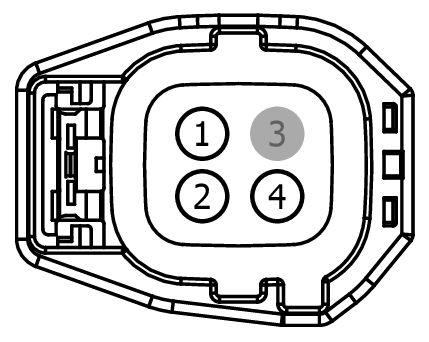

MALE

Harness

17A611

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB08 (GY-YE)	16	N/A
2	GD120 (BK-GN)	16	N/A
3	*	*	N/A
	4	CRW14 (BU-WH)	16	N/A

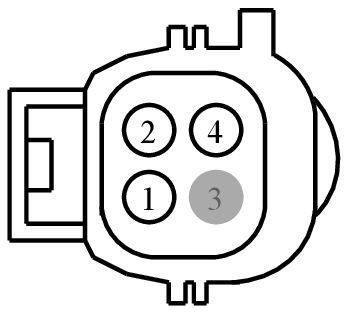

FEMALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB08 (GY-YE)	16	N/A
2	GD120 (BK-GN)	16	N/A
3	*	*	N/A
	4	CRW14 (BU-WH)	16	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1012

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-PA

Gauge:

14

Pin material:

Tin

Cavities:

4

Vehicle Uses:

• Motor - Windshield Wiper
• Radio - Amplifier
