Connector End View (C139) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C139	INLINE	BK	3C22114290/91A000	See Below

Terminal Part Number	Service Part Number	Size

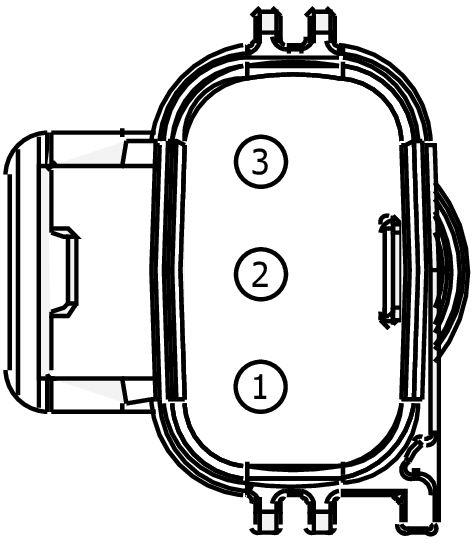

MALE

Harness

3C221

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB65 (WH-OG)	20	N/A
2	VDB25 (GN-OG)	20	N/A
	3	VDB26 (GY-BU)	20	N/A

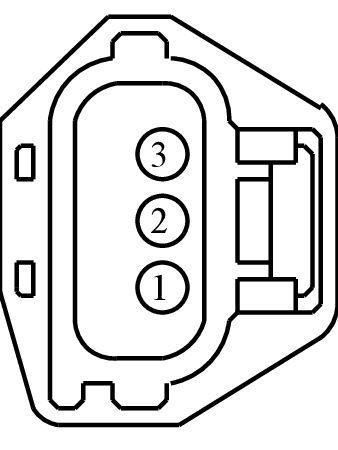

FEMALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBB65 (WH-OG)	20	N/A
2	VDB25 (GN-OG)	20	N/A
	3	VDB26 (GY-BU)	20	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1543

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EXC

Gauge:

16

Pin material:

Silver

Cavities:

3

Vehicle Uses:

• Motor - Rear Window Wiper
• Pretensioner - Seat Belt (Passenger)
• Sensor - Brake Fluid Level
• Sensor - Manifold Absolute Pressure (MAP)
• Sensor - Yaw
