Connector End View (C136) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C136	INLINE	BK	1430514290/91A000	See Below

Terminal Part Number	Service Part Number	Size

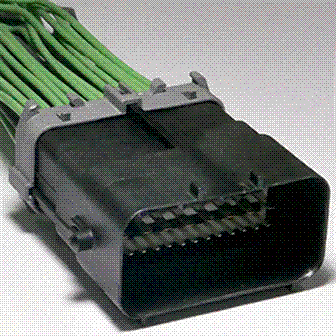

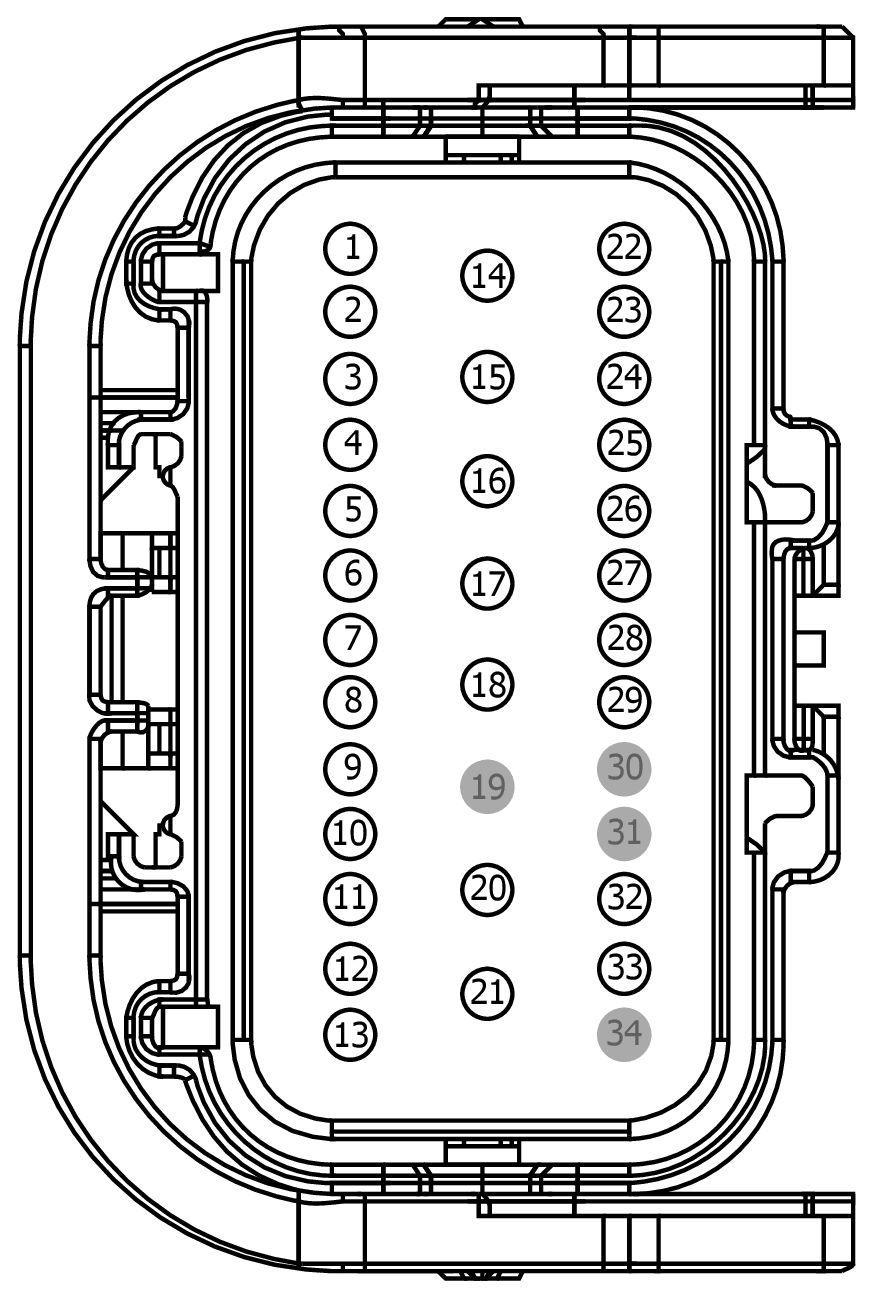

MALE

Harness

14305

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE193 (GY-OG)	18	N/A
2	VE181 (WH-GN)	20	N/A
3	LE424 (YE-GN)	20	N/A
3	VE807 (YE-VT)	18	N/A
4	CBB73 (WH-BN)	18	N/A
4	LETB2 (BN-GN)	20	N/A
5	CET99 (BU-GY)	20	N/A
6	CET91 (YE-OG)	18	N/A
6	RET71 (GY-VT)	20	N/A
7	LETB3 (GY-BN)	20	N/A
8	VDB04 (BU)	20	N/A
9	VDB05 (WH)	20	N/A
10	CE148 (YE-GY)	18	N/A
10	RE406 (GY-VT)	20	N/A
11	GD120 (BK-GN)	18	N/A
12	CET47 (BU)	20	N/A
12	RE320 (BU)	20	N/A
13	CET40 (GN-OG)	20	N/A
13	VE740 (VT-GY)	20	N/A
14	SBB28 (GN-RD)	17	N/A
15	CBB69 (WH-VT)	18	N/A
16	CBB53 (GY-BN)	18	N/A
17	CBB70 (YE-BU)	14	N/A
18	CDC25 (BN-GN)	12	N/A
19	*	*	N/A
20	VE462 (WH-BN)	18	N/A
21	GD120 (BK-GN)	18	N/A
22	CBB55 (BN-BU)	18	N/A
22	VDC61 (VT-GN)	20	N/A
23	RE407 (YE-VT)	20	N/A
23	VE722 (BN)	20	N/A
24	LE423 (GN-VT)	20	N/A
24	RE722 (BU-OG)	20	N/A
25	VE350 (GY)	20	N/A
26	VE351 (VT-OG)	20	N/A
27	VE530 (GY-BN)	20	N/A
28	CCA72 (WH-VT)	18	N/A
28	CET43 (GY)	20	N/A
29	CET42 (GN-VT)	20	N/A
30	*	*	N/A
31	*	*	N/A
32	RE406 (GY-VT)	20	N/A
33	GD121 (BK-YE)	16	N/A
	34	*	*	N/A

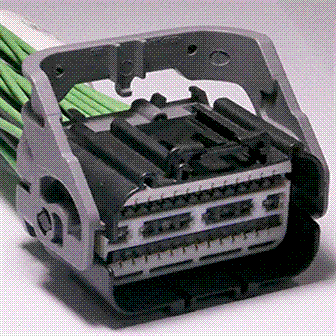

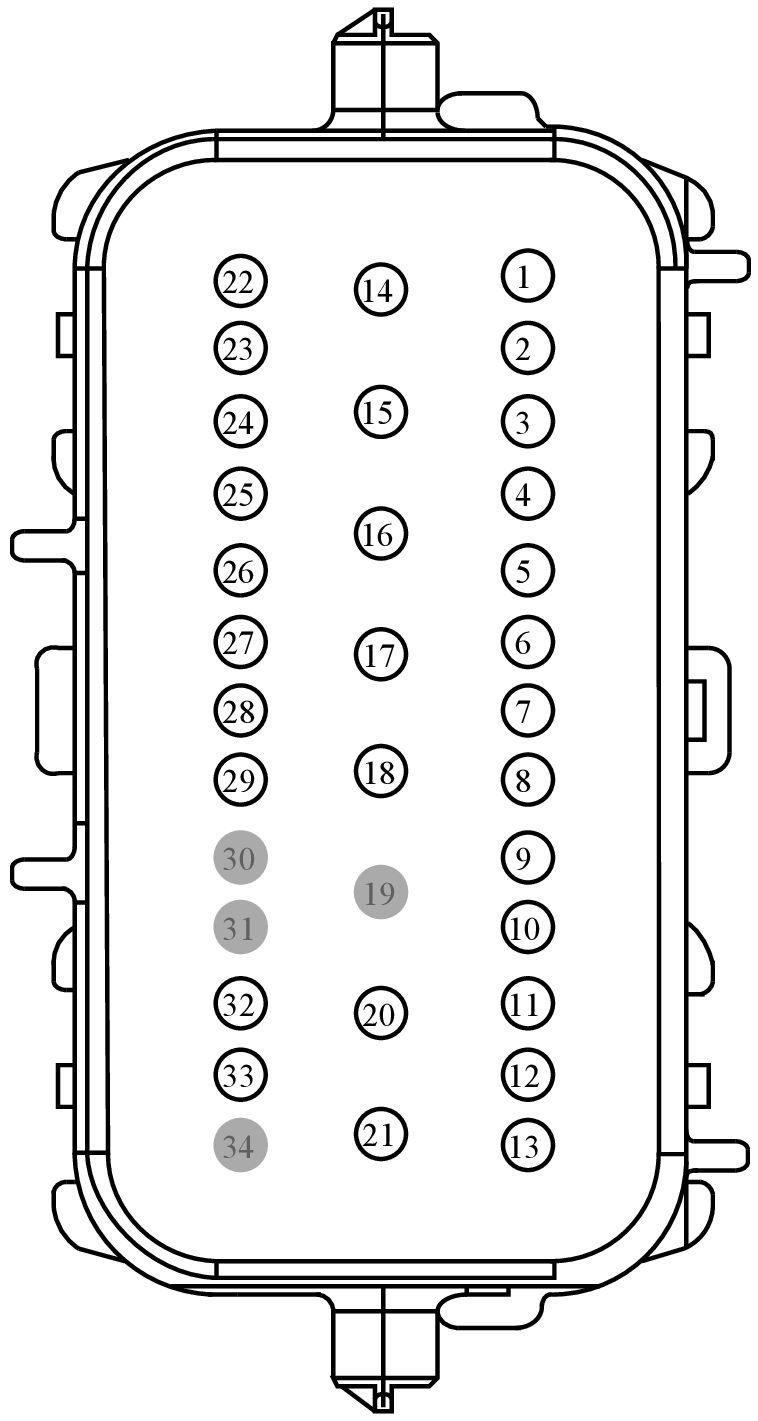

FEMALE

Harness

14290/91A000

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CE193 (GY-OG)	18	N/A
2	VE181 (WH-GN)	20	N/A
3	LE424 (YE-GN)	20	N/A
3	LET71 (YE-GN)	20	N/A
3	VE807 (YE-VT)	18	N/A
4	CBB73 (WH-BN)	18	N/A
4	LETB2 (BN-GN)	20	N/A
5	CET99 (BU-GY)	20	N/A
6	CET91 (YE-OG)	18	N/A
6	RET71 (GY-VT)	20	N/A
7	LETB3 (GY-BN)	20	N/A
8	VDB04 (BU)	20	N/A
9	VDB05 (WH)	20	N/A
10	CE148 (YE-GY)	18	N/A
10	RE406 (GY-VT)	20	N/A
11	GD120 (BK-GN)	17	N/A
12	CET47 (BU)	20	N/A
12	RE320 (BU)	18	N/A
12	RE320 (BU)	20	N/A
13	CET40 (GN-OG)	20	N/A
13	VE740 (VT-GY)	18	N/A
13	VE740 (VT-GY)	20	N/A
14	SBB28 (GN-RD)	17	N/A
15	CBB69 (WH-VT)	18	N/A
16	CBB53 (GY-BN)	18	N/A
17	CBB70 (YE-GN)	12	N/A
18	CDC25 (BN-GN)	12	N/A
19	*	*	N/A
20	VE462 (WH-BN)	18	N/A
21	GD120 (BK-GN)	18	N/A
22	CBB55 (BN-BU)	18	N/A
22	VDC61 (VT-GN)	20	N/A
23	RE407 (YE-VT)	20	N/A
23	VE722 (BN)	20	N/A
24	LE423 (GN-VT)	20	N/A
24	RE722 (BU-OG)	20	N/A
25	VE350 (GY)	20	N/A
26	VE351 (VT-OG)	20	N/A
27	VE530 (GY-BN)	20	N/A
28	CCA72 (WH-VT)	18	N/A
28	CET43 (GY)	20	N/A
29	CET42 (GN-VT)	20	N/A
30	*	*	N/A
31	*	*	N/A
32	RE406 (GY-VT)	20	N/A
33	GD121 (BK-YE)	16	N/A
	34	*	*	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1606

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-SA

Gauge:

14 16

Pin material:

Tin & Silver

Cavities:

34

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-1607

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-TA

Gauge:

14 16

Pin material:

Tin (Greased) & Silver

Cavities:

34

Vehicle Uses:

• Connector - Inline
