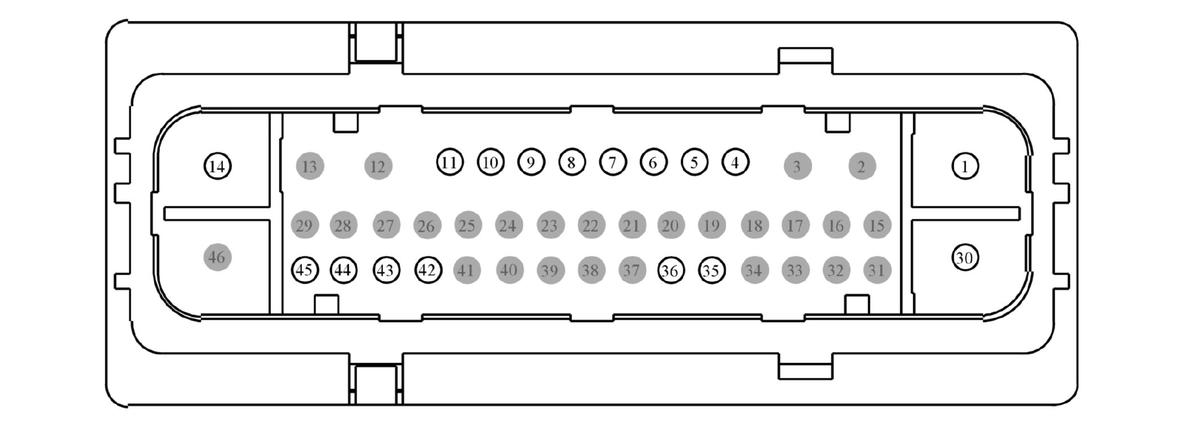

Connector End View (C135) - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C135	ANTI-LOCK BRAKE SYSTEM (ABS) MODULE	BK	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB41 (RD)	10	FUSE - 41 OR CIRCUIT BREAKER	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	RCA19 (GN-WH)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT	N/A
5	VCA05 (GY-VT)	20	SENSOR - WHEEL SPEED RIGHT FRONT	N/A
6	RCA18 (BN-GN)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR	N/A
7	VCA04 (BU-OG)	20	SENSOR - WHEEL SPEED LEFT REAR	N/A
8	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT	N/A
9	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT	N/A
10	RCA20 (BN)	20	CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR	N/A
11	VCA06 (WH-OG)	20	SENSOR - WHEEL SPEED RIGHT REAR	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	GD122 (BK)	10	GROUND - FENDER FRONT LEFT # 3RD POINT	N/A
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	*	*	Not Used	N/A
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	SBB51 (BU-RD)	12	FUSE - 51 OR CIRCUIT BREAKER	N/A
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	CBB56 (BU-GN)	20	FUSE - 56 OR CIRCUIT BREAKER	N/A
36	VCA38 (BN)	20	SENSOR - BRAKE VACUUM SIGNAL 1	N/A
37	*	*	Not Used	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	VDB25 (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	N/A
43	VDB26 (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	N/A
44	LCA37 (YE-OG)	20	CTRL MOD. - SENSOR BRAKE VACUUM +	N/A
45	RCA37 (WH-BU)	20	CTRL MOD. - SENSOR BRAKE VACUUM -	N/A
46	*	*	Not Used	N/A

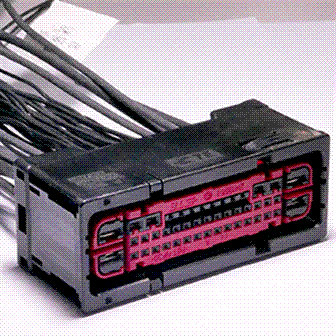

Available Pigtail Kits

Pigtail Kit Part Number WPT-1603

Courtesy of FORD MOTOR COMPANY

Service Part Number:

KU2Z-14S411-NA

Gauge:

12 14 20

Pin material:

Tin

Cavities:

46

Vehicle Uses:

• Module - Anti-Lock Brake System
