Connector End View (C134) - INLINE

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C134	INLINE	BK	1430512C508	See Below

Terminal Part Number	Service Part Number	Size

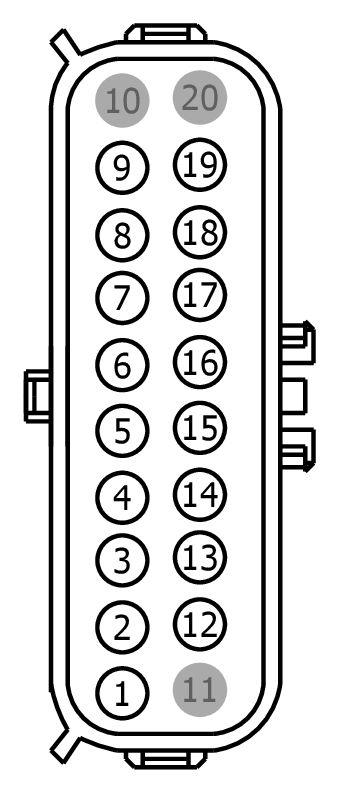

MALE

Harness

14305

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	LE135 (GY-VT)	20	N/A
2	RE135 (GN-BN)	20	N/A
3	VE774 (YE-GN)	20	N/A
4	VE711 (YE-VT)	20	N/A
5	CMC14 (BN-YE)	20	N/A
6	RE908 (BN-BU)	20	N/A
7	VE719 (GY-VT)	20	N/A
8	CE476 (BU-WH)	18	N/A
9	VE712 (BU-GY)	18	N/A
10	*	*	N/A
11	*	*	N/A
12	CE431 (WH)	18	N/A
13	CE432 (BU)	18	N/A
14	LE182 (VT-BN)	20	N/A
15	RE774 (GN-OG)	20	N/A
16	RE476 (GN-OG)	18	N/A
17	VE837 (WH)	18	N/A
18	RE719 (BN-BU)	20	N/A
19	RE138 (BU-GN)	18	N/A
	20	*	*	N/A

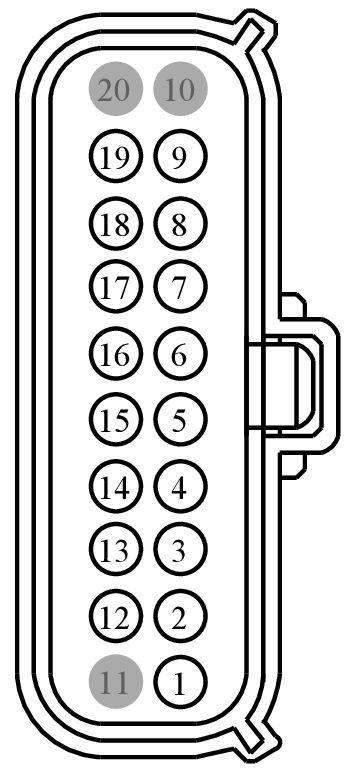

FEMALE

Harness

12C508

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	LE135 (GY-VT)	20	N/A
2	RE135 (GN-BN)	20	N/A
3	VE744 (YE-GN)	20	N/A
3	VE774 (YE-GN)	20	N/A
4	VE711 (YE-VT)	20	N/A
5	CMC14 (BN-YE)	20	N/A
6	RE908 (BN-BU)	20	N/A
7	VE719 (GY-VT)	20	N/A
8	CE476 (BU-WH)	18	N/A
9	VE712 (BU-GY)	18	N/A
10	*	*	N/A
11	*	*	N/A
12	CE431 (WH)	18	N/A
13	CE432 (BU)	18	N/A
14	LE182 (VT-BN)	20	N/A
15	RE774 (GN-OG)	20	N/A
16	RE476 (GN-OG)	18	N/A
17	VE837 (WH)	18	N/A
18	RE719 (BN-BU)	20	N/A
19	RE138 (BU-GN)	18	N/A
	20	*	*	N/A

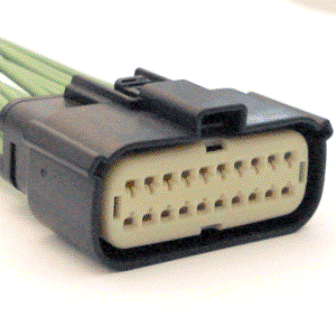

Available Pigtail Kits

Pigtail Kit Part Number WPT-1567

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-HB

Gauge:

16

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Connector - Inline

Pigtail Kit Part Number WPT-889

Courtesy of FORD MOTOR COMPANY

Service Part Number:

7U2Z-14S411-GA

Gauge:

16

Pin material:

Silver

Cavities:

20

Vehicle Uses:

• Connector - Inline
• For Mating Connector Refer To WPT-890
