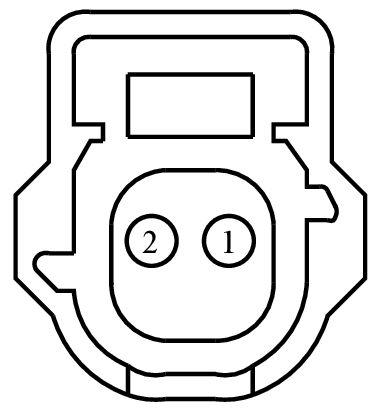

Connector End View (C132) - AMBIENT AIR TEMPERATURE (AAT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C132	AMBIENT AIR TEMPERATURE (AAT) SENSOR	BK	14290/91A000	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE750 (GN-BU)	20	SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT)	N/A
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	N/A
2	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	1.0L GTDI	N/A
2	RE335 (VT-GN)	20	CTRL MOD. - POWERTRAIN # POWERTRAIN AMBIENT TEMP. SENSOR (AAT)	2.0L	N/A

Available Pigtail Kits

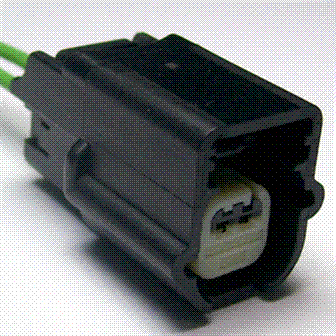

Pigtail Kit Part Number WPT-1548

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AGC

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Ambient Temp
• Sensor - Side Impact

Pigtail Kit Part Number WPT-1306

Courtesy of FORD MOTOR COMPANY

Service Part Number:

AU2Z-14S411-AGB

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Ambient Temp
• Sensor - Side Impact
