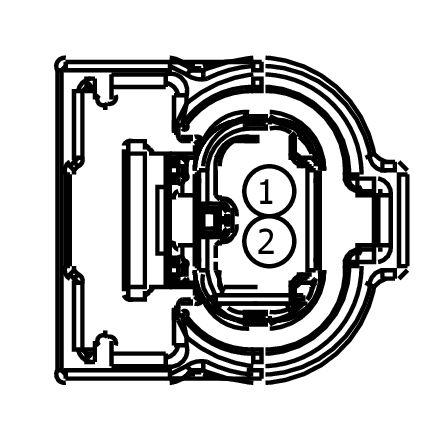

Connector End View (C130) - AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C130	AIR CONDITIONING (A/C) COMPRESSOR CONTROL SOLENOID	14305			part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE462 (WH-BN)	18	CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE	N/A
2	CBB69 (WH-VT)	18	FUSE - 69 OR CIRCUIT BREAKER	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1520

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-TA

Gauge:

20

Pin material:

Silver

Cavities:

2

Vehicle Uses:

• Sensor - Knock
• Solenoid - Engine Variable Timing
• Solenoid - Turbo Charger Bypass
• Valve - Variable A/C Compressor
