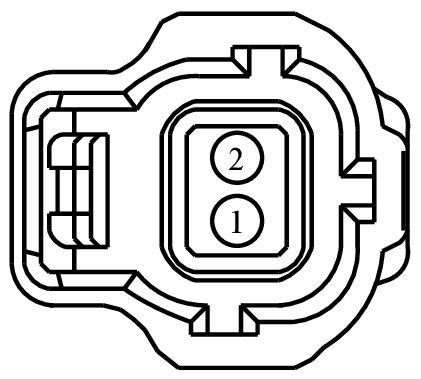

Connector End View (C129) - CHARGE AIR COOLER TEMPERATURE (CACT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C129	CHARGE AIR COOLER TEMPERATURE (CACT) SENSOR	BK	14305	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
2	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Resistor - Daytime Running Lamp (DRL)
• Sensor - Air Charge Temperature
• Sensor - Brake Pressure
• Solenoid - Canister Vent
• Switch - Brake Pressure
