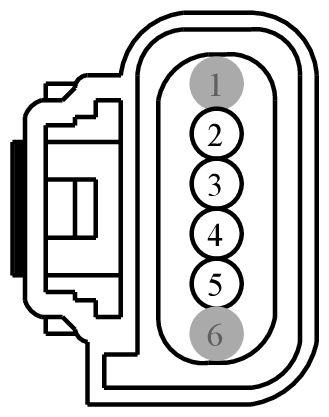

Connector End View (C128) - MASS AIR FLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C128	MASS AIR FLOW/INTAKE AIR TEMPERATURE (MAF/IAT) SENSOR	BK	14305	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used	N/A
2	VE740 (VT-GY)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	N/A
3	CBB68 (GY-VT)	20	FUSE - 68 OR CIRCUIT BREAKER	diesel	N/A
3	CBB73 (WH-BN)	18	FUSE - 73 OR CIRCUIT BREAKER	N/A
4	RE320 (BU)	20	CTRL MOD. - POWERTRAIN # MASS AIR FLOW SEN. LH BANK OR 1ST BANK (MAFRTN)	N/A
5	VE807 (YE-VT)	20	SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF)	N/A
5	VE807 (YE-VT)	18	SENSOR - MASS AIR FLOW LH BANK OR 1ST BANK OR UNIQUE (MAF)	N/A
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1241

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-FJAC

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Control - Electronic Throttle
• Sensor - Mass Air Flow
