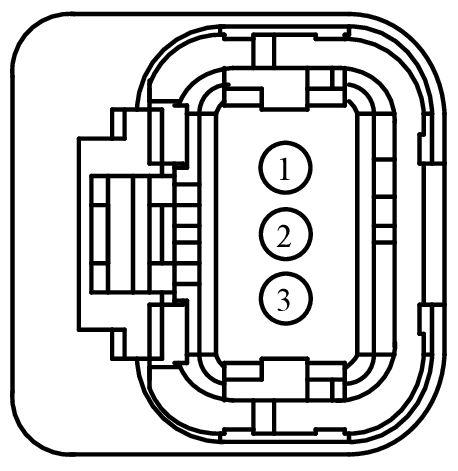

Connector End View (C101) - CRANKSHAFT POSITION (CKP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C101	CRANKSHAFT POSITION (CKP) SENSOR	BK	12C508/14305	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE135 (GY)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +	1.0L	N/A
1	LE135 (GY-VT)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) +	N/A
2	RE135 (GN-BN)	20	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	N/A
2	RE406 (GY-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B)	1.0L	N/A
3	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +	1.0L	N/A
3	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKPP) +	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1431

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-AAA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Crank Shaft Position
