Instrument Panel Cluster (IPC): Installation

NOTE: This step is only required when replacing with new component.

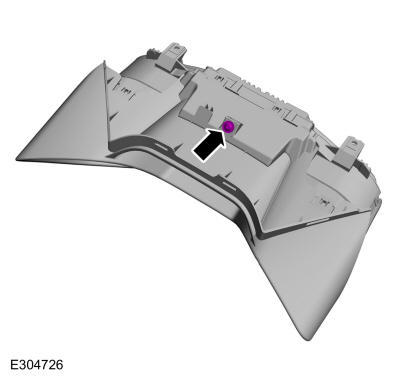

Install the screw.

Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
If a new module has been installed, download the IPC configuration information from the scan tool to the new IPC by following the scan tool on screen instructions.
If a new module has been installed, using the scan tool, select Tool Box/Module Programming/Programmable Parameters/Car Configuration Parameter(s)/Vehicle Configuration/Retrieve Professional Technician Society (PTS) Derived As-built Data. Follow the on-screen instructions to install the as-built data into the IPC.
