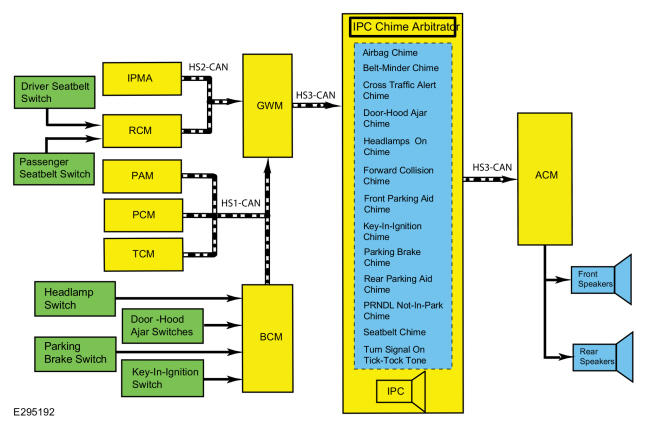

Home >> Ford >> 2022 >> Transit Connect Titanium, Gas/Ethanol >> Repair and Diagnosis >> Electrical >> Gauges >> Instrumentation, Message Center And Warning Chimes (1 Of 2) >> Description And Operation >> Warning Chimes - System Operation and Component Description >> System Diagram
