Instrument Panel Cluster (IPC) - Overview: Overview
The IPC uses gauges, warning and informational indicators, RTT indicators and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner Literature.
The IPC provides a single display screen that contains the message center and RTT indications.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation.

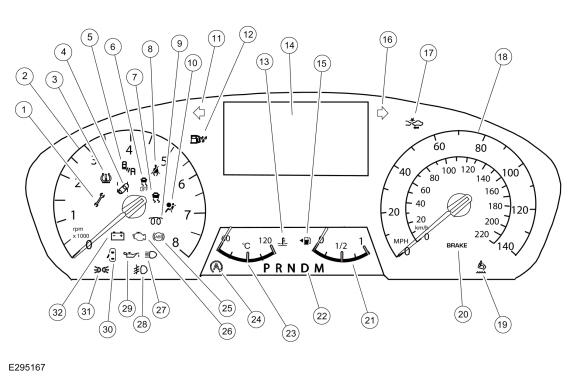

IPC
| Item | Description |
|---|---|
| 1 | Powertrain malfunction (wrench) indicator |
| 2 | Tachometer |
| 3 | TPMS warning indicator |
| 4 | Lane keeping assist indicator |
| 5 | BLIS/ CTA indicator |
| 6 | Traction control disabled indicator (sliding car OFF icon) |
| 7 | Stability-traction control indicator (sliding car icon) |
| 8 | Seatbelt indicator |
| 9 | Wait to start indicator (diesel only) |
| 10 | Airbag warning indicator |
| 11 | LH turn indicator |
| 12 | Water in fuel indicator (diesel only) |
| 13 | Engine over-temperature indicator |
| 14 | Message center display |
| 15 | Low fuel indicator |
| 16 | RH turn indicator |
| 17 | Forward collision warning indicator |
| 18 | Speedometer |
| 19 | Diesel exhaust fluid level indicator (diesel only) |
| 20 | Brake warning indicator |
| 21 | Fuel gauge |
| 22 | PRNDL display (automatic transmission) |
| 23 | Engine temperature gauge |
| 24 | Auto stop/start indicator |
| 25 | ABS indicator |
| 26 | MIL |
| 27 | High beams indicator |
| 28 | Front fog lamp indicator |
| 29 | Low engine oil pressure warning indicator |
| 30 | Door ajar indicator |
| 31 | Lights on indicator |
| 32 | Charging system indicator |
