Floor Console - Vehicles With: Double Passenger Seat: Removal

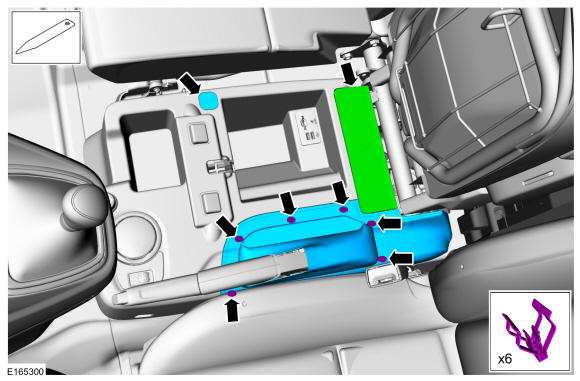

1. • Remove the 2 rear floor console section retainer covers and the parking brake lever panel.

     Use Special Service Tool: 501-125 Remover, Grab Handle Cover.

   Courtesy of FORD MOTOR COMPANY

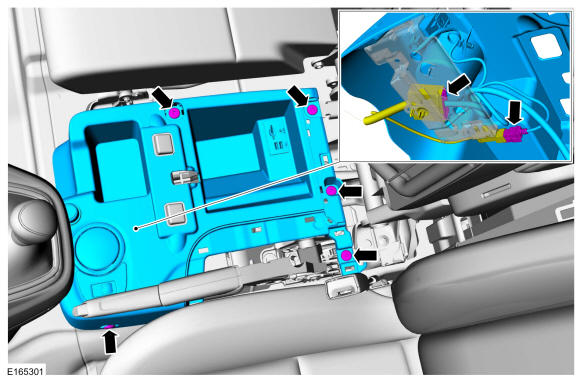

2. • Remove the reatiners and floor console upper trim panel.
   • Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY
