Battery Tray - 2.0L Duratec-HE (110kW/150PS) - MI4: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the battery. Refer to: Battery - 2.0L Duratec-HE (110kW/150PS) - MI4 .

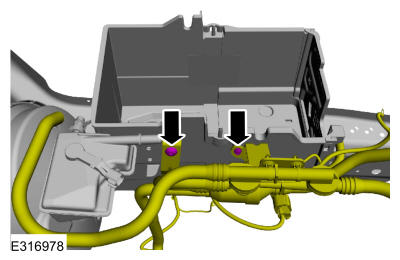

- Remove the screw and pushpin. Position the coolant hose bracket aside.

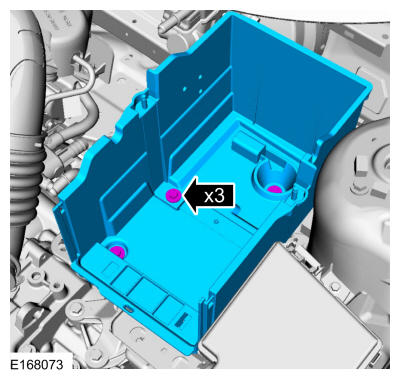

- Remove the bolts and the battery tray.
Torque: 97 lb.in (11 Nm)
