Battery Cables - 2.0L Duratec-HE (110kW/150PS) - MI4: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the air cleaner. Refer to: Air Cleaner .
NOTE: The cowl panel is removed for clarity.

Remove the battery covers.

Courtesy of FORD MOTOR COMPANY

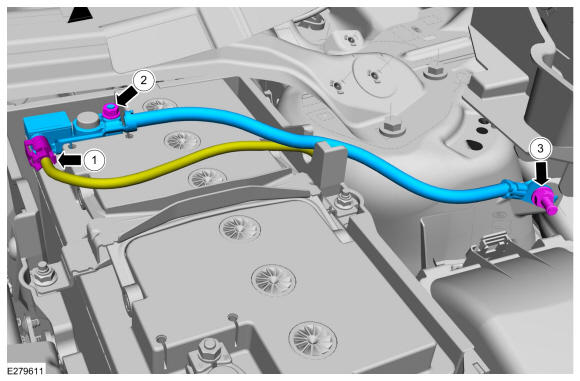

1. Disconnect the BMS electrical connector.
2. Remove the negative battery cable nut.
  Torque: 44 lb.in (5 Nm)
3. Remove the negative battery cable nut.
  Torque: 150 lb.in (17 Nm)
Courtesy of FORD MOTOR COMPANY
Remove the positive battery cable cover.

Courtesy of FORD MOTOR COMPANY

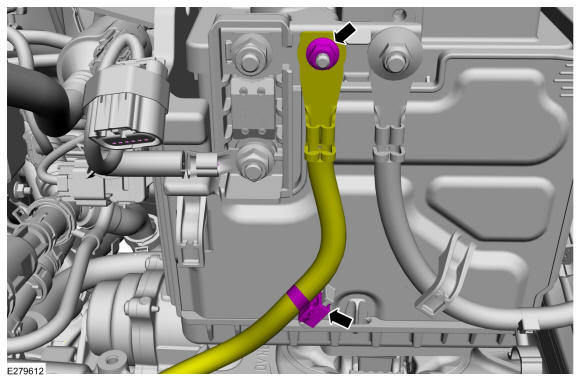

Loosen the nut and remove the retainer, detach the positive battery cable from the battery terminal post.
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

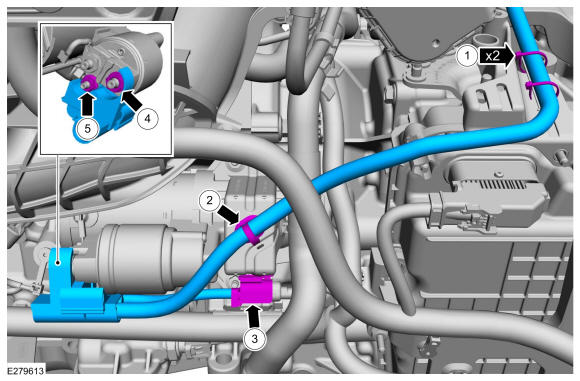

1. Detach the wiring harness retainers.
2. Detach the wiring harness retainer.
3. Disconnect the starter motor electrical connector.
4. Remove the nut.
  Torque: 106 lb.in (12 Nm)
5. Remove the nut.
  Torque: 53 lb.in (6 Nm)
