Outer Constant Velocity (CV) Joint Boot: Removal

  1. Remove the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot .

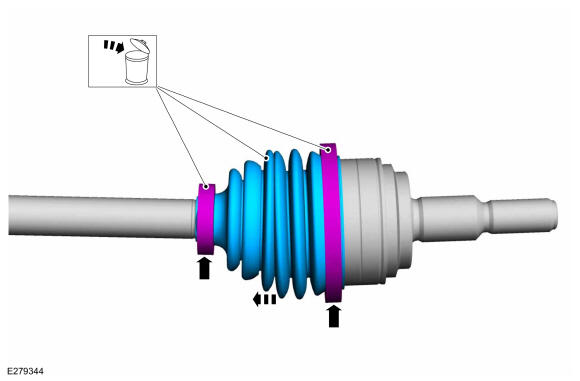

    • Remove and discard the CV joint boot clamps.

    • Remove and discard the CV joint boot.

GFD569997Courtesy of FORD MOTOR COMPANY
