Outer Constant Velocity (CV) Joint Boot: Installation

NOTE: Grease sachet is supplied with boot kit.

NOTE: Make sure that the component is clean, free of foreign material and lubricant.

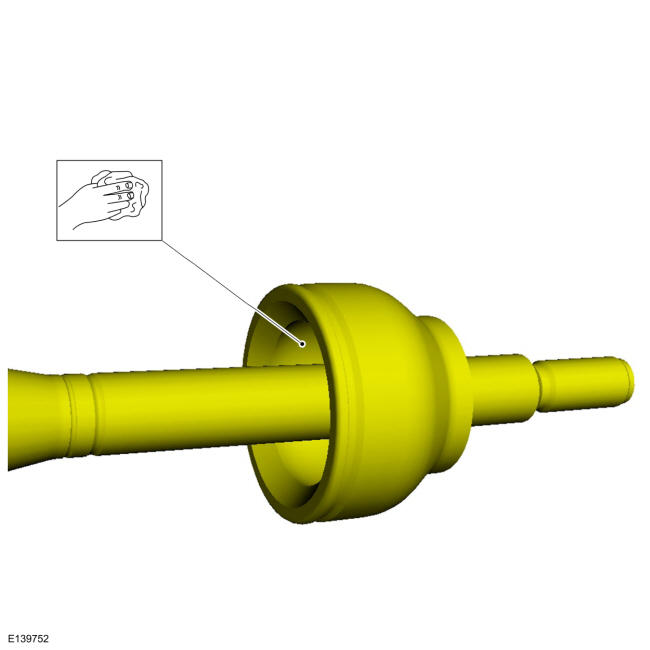

Clean the CV housing.

Courtesy of FORD MOTOR COMPANY
Press the grease from the grease sachet evenly in the CV joint boot and housing.
Material

: Motorcraft® Constant Velocity Joint Grease / XG-5 (WSS-M1C258-A1)

Courtesy of FORD MOTOR COMPANY
- NOTE: Make sure a new component is installed.

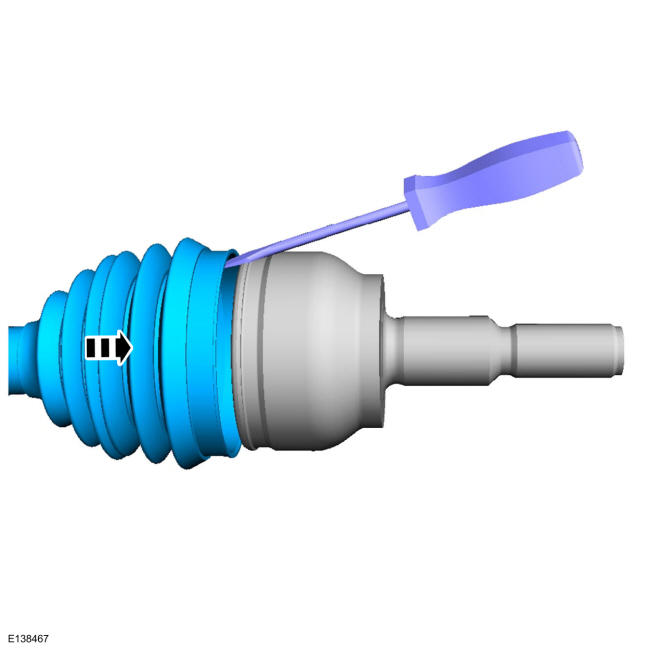

  Install the CV boot using a flat headed screw driver to allow air to escape. Use the General Equipment: Flat Headed Screw Driver
Courtesy of FORD MOTOR COMPANY
- Position the CV joint boot.
- NOTE: Make sure that new components are installed.

  Using boot clamp pliers, install the CV joint boot clamps. Use Special Service Tool: 205-343 (T95P-3514-A) Installer, Constant Velocity Joint Boot Clamp.
Courtesy of FORD MOTOR COMPANY
Install the inner CV joint boot. Refer to: Inner Constant Velocity (CV) Joint Boot .
