Home >> Ford >> 2022 >> Transit Connect Titanium, Gas/Ethanol >> Repair and Diagnosis >> Drivelines & Axles >> Differentials & Drive Axles >> Front Drive HALFSHAFTS - 8-Speed Automatic Transmission - 8F35 >> Removal And Installation >> Intermediate Shaft Bearing >> Removal

Intermediate Shaft Bearing: Removal

  1. Refer to: Intermediate Shaft .

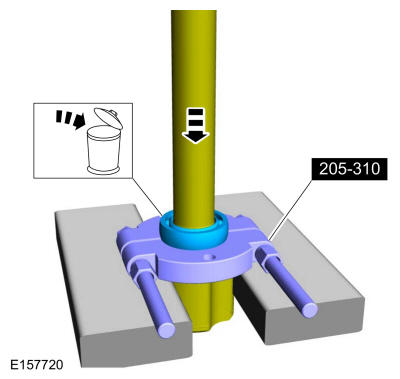

  2. Use Special Service Tool: 205-310 Remover, Bearing/Gear. Use the General Equipment: Puller. Use the General Equipment: Hydraulic Press
GFD570019Courtesy of FORD MOTOR COMPANY
