Inner Constant Velocity (CV) Joint Boot: Removal

1. Remove the front halfshaft. Refer to: Front Halfshaft LH . Refer to: Front Halfshaft RH .
2. • Remove and discard the large and small CV boot clamps.

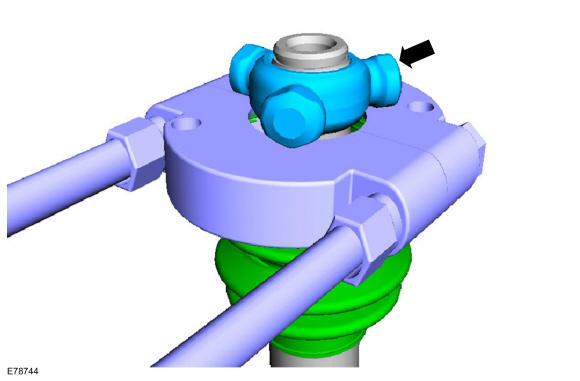

   • Position the CV joint boot and remove the inner CV joint housing.

   Courtesy of FORD MOTOR COMPANY

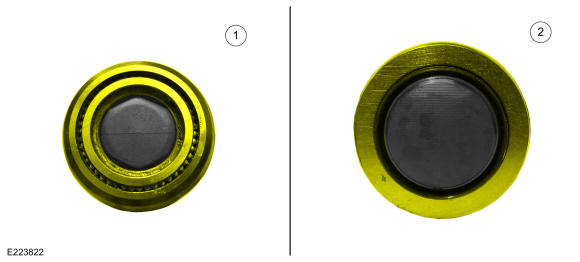

3. 1. Dismountable constant velocity joint bearing.
   2. Not dismountable constant velocity joint bearing.

   Courtesy of FORD MOTOR COMPANY

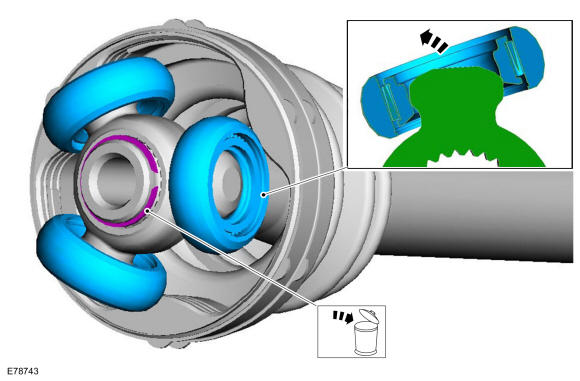

4. • Dismountable constant velocity joint bearing. Remove and discard the CV joint tripod bearing circlip.
   • Remove the CV rollers.

   Courtesy of FORD MOTOR COMPANY

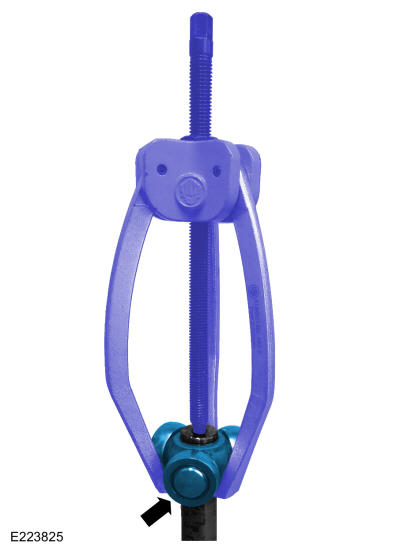

5. Dismountable constant velocity joint bearing. Remove the CV joint tripod. Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

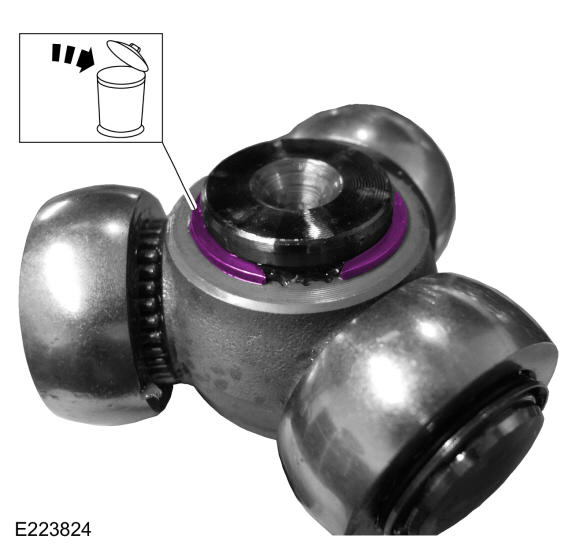

6. Not dismountable constant velocity joint bearing. Remove and discard the CV joint tripod bearing circlip.

   Courtesy of FORD MOTOR COMPANY

7. Not dismountable constant velocity joint bearing. Remove the CV joint tripod. Use the General Equipment: Puller

   Courtesy of FORD MOTOR COMPANY

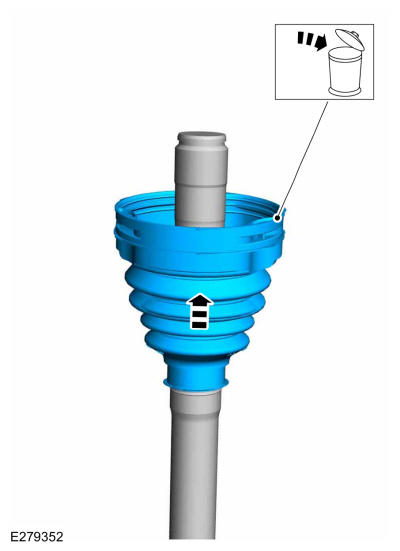

8. Remove and discard the inner CV joint boot.

Courtesy of FORD MOTOR COMPANY
